| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,704,600 pcs
|
1704600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Halogen Free | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage | |
| Voltage Dropout (Max) |
The NCP137AFCTC110T2G is a 700 mA Very Low Dropout (VLDO) linear voltage regulator manufactured by ON Semiconductor. It utilizes an NMOS pass transistor and a separate bias supply voltage (V BIAS) to provide stable and accurate output voltages.
This device offers an ultra-low dropout voltage, typically 40 mV at 700 mA, and features ±1% accuracy over temperature. It has a fixed output voltage of 1.1V, with adjustable versions also available. The regulator operates with an input voltage range up to 5.5V and a bias voltage range of 2.5V to 5.5V. Its low quiescent current consumption, typically 35 µA, makes it suitable for battery-operated portable applications.
The NCP137AFCTC110T2G includes features such as a logic-level enable input for ON/OFF control and an optional active discharge function. It is stable with a 4.7 µF ceramic capacitor. The device is Pb-Free, Halogen Free/BFR Free, and RoHS Compliant.

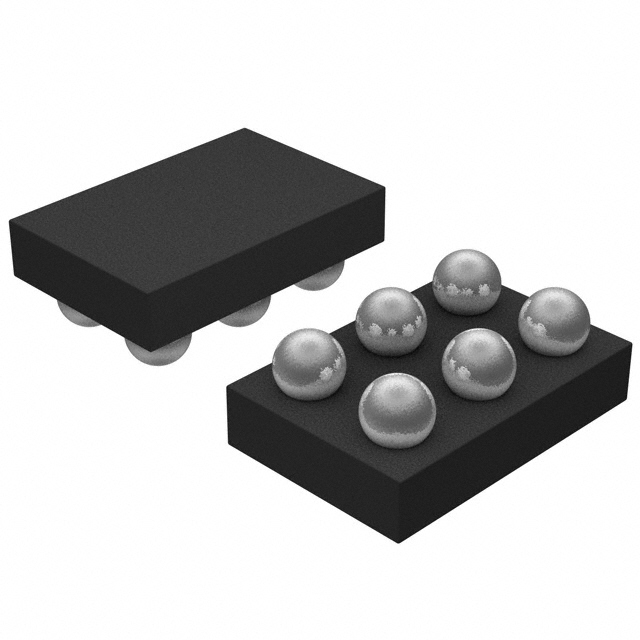

Packaged in a compact 6-WLCSP (1.2 mm x 0.8 mm) with a 0.4 mm pitch, this regulator is optimized for space-constrained applications. It is suitable for use in battery-powered equipment, smartphones, tablets, cameras, DVRs, STBs, and camcorders.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NCP137AFCTC110T2G has a fixed output voltage of 1.1V.
The maximum output current is 700mA.
The operating junction temperature range is -40°C to 85°C.
It is available in a 6-WLCSP (1.2x0.8) surface-mount package.
The typical dropout voltage is 40mV at 700mA.
The typical quiescent current is 35µA.
Yes, it includes Under Voltage Lockout (UVLO) protection.
