| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
887,013 pcs
|
887013 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Halogen Free | |
| Input Voltage | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage | |
| Voltage Dropout (Max) |
The ON Semiconductor NCP134AMX110TCG is a 500 mA, very low dropout (VLDO) linear voltage regulator. It utilizes an NMOS pass transistor and a separate bias supply voltage (VBIAS) to provide stable and accurate output voltage with low noise, making it suitable for space-constrained and noise-sensitive applications.
Key electrical specifications include an input voltage range of 0.8 V to 5.5 V, a fixed output voltage of 1.1 V, and an output current capability of up to 500 mA. The device offers an ultra-low dropout voltage, typically 150 mV at 500 mA, and features ±1.5% accuracy over temperature. It also includes protection features such as over current, over temperature, and under voltage lockout (UVLO).

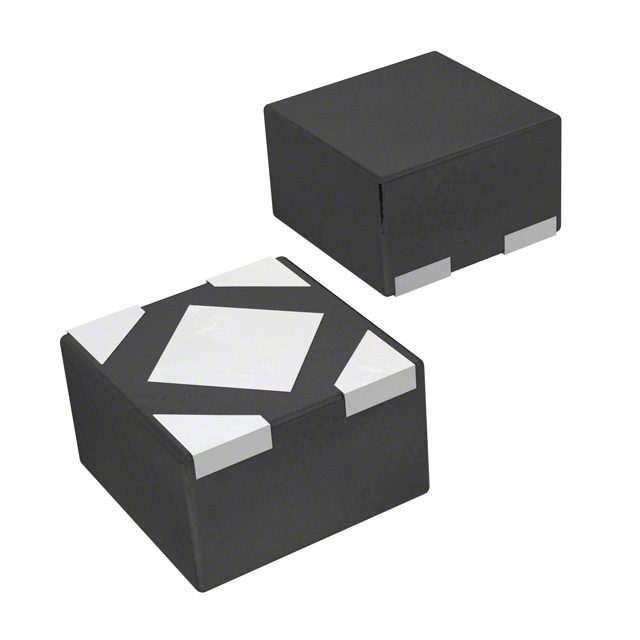

Designed for battery-operated portable applications, the NCP134AMX110TCG features low quiescent current consumption. It is available in a compact 4-XDFN package measuring 1.2 mm x 1.2 mm, optimized for space-constrained designs. The regulator operates within a temperature range of -40°C to 85°C.
Typical applications include battery-powered equipment, smartphones, tablets, cameras, DVRs, STB, and camcorders where stable power delivery and low noise are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 0.8 V to 5.5 V.
The fixed output voltage is 1.1 V.
The maximum output current is 500 mA.
The maximum dropout voltage is 150 mV at 500 mA output, 1.1 V output, and 3.3 V bias at 85°C.
The operating temperature range is -40°C to 85°C.
The package is 4-XDFN (1.2x1.2 mm) with exposed pad, surface mount.
The output voltage accuracy is ±1.5% over temperature, with 0.5% typical at 25°C.
