NCP133AMXADJTCG The ON Semiconductor NCP133AMXADJTCG is an adjustable LDO voltage regulator capable of delivering up to 500mA. It offers a wide input voltage range and low dropout characteristics.
Mfr Part #:

NCP133AMXADJTCG

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCP133AMXADJTCG is an adjustable LDO voltage regulator capable of delivering up to 500mA. It offers a wide input voltage range and low dropout characteristics.
✓ Total Stock: 766,355 pcs
$ Price Range: $0.28

NCP133AMXADJTCG Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
761,701 pcs
On Request
761701 pcs On Request 1 On Request On Request On Request On Request On Request
Rayichip ✓
Non-Authorised Inventory information
2,595 pcs
On Request
2595 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,709 pcs
On Request
1709 pcs On Request 1 On Request On Request 1641+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
350 pcs
On Request
350 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCP133AMXADJTCG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Halogen Free
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
SVHC Present
Supplier Device Package
Supplier Package
Voltage
Voltage Dropout (Max)
View Similar Products (0)

NCP133AMXADJTCG Description

Short technical summary and product information.

The NCP133AMXADJTCG from ON Semiconductor is a 500 mA, very low dropout (VLDO) bias rail CMOS voltage regulator. It is designed for noise-sensitive applications requiring stable and accurate output voltage.



This adjustable regulator features an input voltage range of 0.8 V to 5.5 V and an output voltage range of 0.8 V to 3.6 V. It provides ±1.5% accuracy over temperature, with 0.5% accuracy at 25°C. The ultra-low dropout voltage is typically 140 mV at 500 mA. Protection features include over current, over temperature, and under voltage lockout (UVLO).

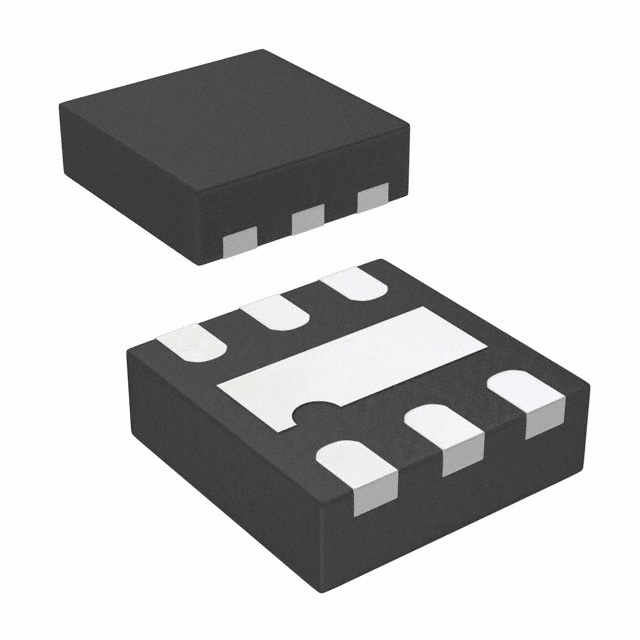

The device is available in a compact 6-XDFN (1.2x1.2 mm) package, making it suitable for space-constrained applications. It operates within a temperature range of -40°C to 85°C and is Pb-Free, Halogen Free/BFR Free, and RoHS Compliant.



Typical applications include battery-powered equipment, smartphones, tablets, cameras, DVRs, STBs, and camcorders where low power consumption and high performance are critical.

NCP133AMXADJTCG Quick Information

Product Type: LDO Voltage Regulator
Canonical Name: NCP133AMXADJTCG Adjustable LDO Voltage Regulator
Subcategory: Power Management ICs

NCP133AMXADJTCG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NCP133AMXADJTCG Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP133AMXADJTCG Features

  • 500mA output current capability.
  • Adjustable output voltage from 0.8V to 3.6V.
  • Ultra-low dropout voltage.
  • Compact 6-XDFN package.
  • Over current and thermal protection.

NCP133AMXADJTCG Applications

  • Ideal for battery-powered devices.
  • Suitable for noise-sensitive applications.
  • Used in smartphones and tablets.
  • Applicable for camera and DVR systems.

NCP133AMXADJTCG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the NCP133AMXADJTCG?

The input voltage range is 0.8 V to 5.5 V.

What is the package type of the NCP133AMXADJTCG?

It is available in a 6-XDFN Exposed Pad package (6-XDFN 1.2x1.2).

What is the operating temperature range?

-40°C to 85°C.

What is the maximum output current?

500 mA.

What is the dropout voltage of this regulator?

Typically 140 mV at 500 mA load, maximum 250 mV.

What is the output voltage accuracy?

±1.5% over temperature, ±0.5% typical at 25°C.

What protection features are included?

Over current, over temperature, and under voltage lockout (UVLO).
