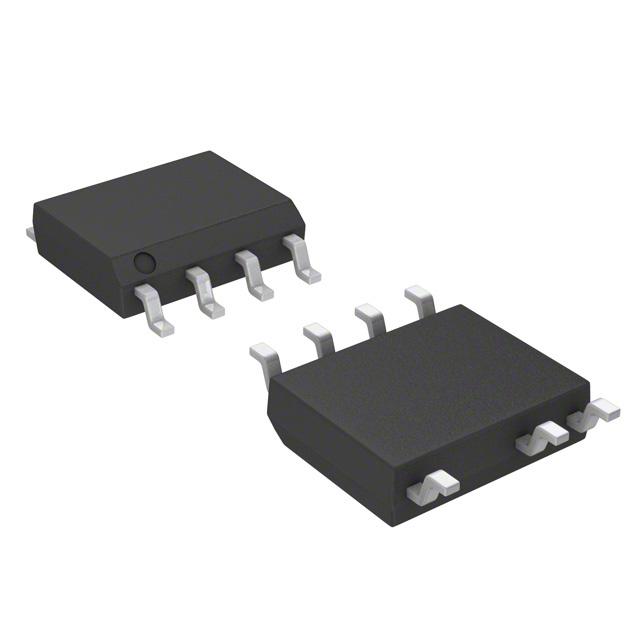

NCP12400BBAAA0DR2G The On Semiconductor NCP12400BBAAA0DR2G is a fixed frequency current mode controller designed for flyback converters. It operates with a switching frequency of 65kHz and a supply voltage range of 8.9V to 28V.
Mfr Part #:

NCP12400BBAAA0DR2G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NCP12400BBAAA0DR2G is a fixed frequency current mode controller designed for flyback converters. It operates with a switching frequency of 65kHz and a supply voltage range of 8.9V to 28V.
✓ Total Stock: 40,000 pcs
$ Price Range: $0.75

NCP12400BBAAA0DR2G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
40,000 pcs
On Request
40000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCP12400BBAAA0DR2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Duty Cycle
Fault Protection
Frequency
Internal Switch(s)
Lead Style
Mounting Type
Operating Temperature
Output Isolation
Supplier Device Package
Topology
Voltage
View Similar Products (0)

NCP12400BBAAA0DR2G Description

Short technical summary and product information.

The NCP12400BBAAA0DR2G from On Semiconductor is a fixed-frequency, current-mode controller specifically designed for flyback converter applications. This component simplifies auxiliary supply and VCC capacitor design through its Dynamic Self-Supply feature, which activates an internal startup current source during various operational states.



Key electrical specifications include a switching frequency of 65kHz, an 80% duty cycle, and an operating voltage range of 8.9V to 28V. It supports soft start control and offers comprehensive fault protection, including over load, over power, over temperature, and over voltage detection. The device operates within a temperature range of -40°C to 150°C (TJ).



This controller is housed in a 7-SOIC package and utilizes a surface mount configuration. It features isolated output and is supplied on tape and reel. The NCP12400BBAAA0DR2G is suitable for applications such as offline adapters for notebooks, LCDs, and printers, as well as offline battery chargers and consumer electronic power supplies.

NCP12400BBAAA0DR2G Quick Information

Product Type: AC DC Converter, Offline Switch
Canonical Name: NCP12400 Fixed Frequency Current Mode Controller for Flyback Converters
Subcategory: Offline Switch

NCP12400BBAAA0DR2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NCP12400BBAAA0DR2G Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP12400BBAAA0DR2G Features

  • Fixed frequency current mode controller.
  • Designed for flyback converter applications.
  • Operates at 65kHz switching frequency.
  • Wide 8.9V to 28V supply voltage range.
  • Surface mount 7-SOIC package.

NCP12400BBAAA0DR2G Applications

  • Used in offline adapters for notebooks.
  • Suitable for offline battery chargers.
  • Applied in consumer electronic power supplies.
  • Enables robust power supply designs.

NCP12400BBAAA0DR2G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the NCP12400BBAAA0DR2G?

The operating voltage range is 8.9V to 28V.

What is the switching frequency of this AC DC converter?

The switching frequency is 65kHz.

What type of package is the NCP12400BBAAA0DR2G supplied in?

It is supplied in a 7-SOIC package, specifically 8-SOIC (0.154", 3.90mm Width), 7 Leads, and is surface mountable.

What is the operating temperature range?

The operating temperature range is -40°C to 150°C (TJ).

Does the NCP12400BBAAA0DR2G have soft start functionality?

Yes, it features soft start control.

What fault protection features are included?

It includes protection for over load, over power, over temperature, and over voltage.
