NCP114AMX075TCG The ON Semiconductor NCP114AMX075TCG is a linear voltage regulator offering a fixed 0.75V output at 300mA. It operates with an input voltage range of 1.7V to 5.5V.
Mfr Part #:

NCP114AMX075TCG

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCP114AMX075TCG is a linear voltage regulator offering a fixed 0.75V output at 300mA. It operates with an input voltage range of 1.7V to 5.5V.
✓ Total Stock: 303,764 pcs
$ Price Range: $0.28

NCP114AMX075TCG Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
284,144 pcs
On Request
284144 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
19,620 pcs
On Request
19620 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCP114AMX075TCG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Control Features
Current
Input Voltage
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Current
Output Type
PSRR
Protection Features
Quiescent Current
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

NCP114AMX075TCG Description

Short technical summary and product information.

The ON Semiconductor NCP114AMX075TCG is a 300 mA Low Dropout (LDO) linear voltage regulator designed for stable and accurate voltage output in noise-sensitive applications. It features a fixed output voltage of 0.75V and operates within an input voltage range of 1.7V to 5.5V.



Key electrical characteristics include a low dropout voltage of 135 mV typical at 300 mA, a high Power Supply Ripple Rejection (PSRR) of 75 dB at 1 kHz, and a typical quiescent current of 50 µA. Protection features include over current and over temperature shutdown.

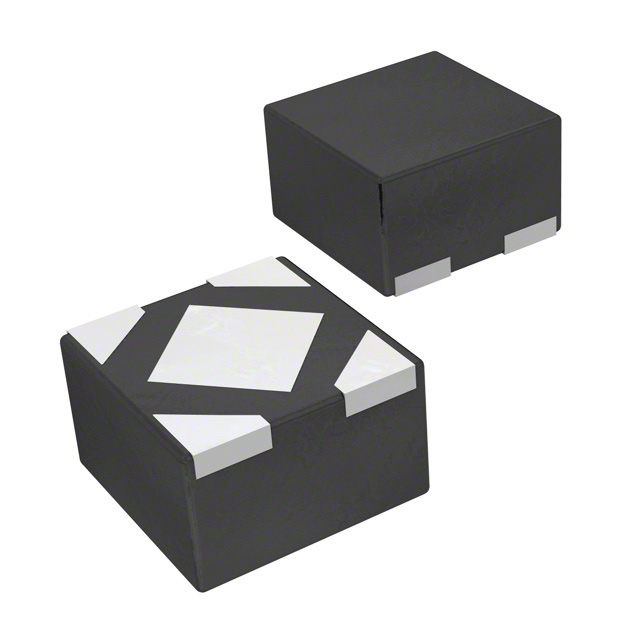

This regulator is available in a compact 4-UDFN (1.0x1.0) package, suitable for space-constrained designs. It is surface-mount compatible and designed for optimal performance in battery-powered applications such as PDAs, mobile phones, and wireless devices.

NCP114AMX075TCG Quick Information

Product Type: Voltage Regulator - Linear
Series: NCP114
Canonical Name: NCP114AMX075TCG Voltage Regulator
Subcategory: Voltage Regulators

NCP114AMX075TCG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free Devices

NCP114AMX075TCG Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP114AMX075TCG Features

  • Fixed 0.75V output voltage.
  • 300mA maximum output current.
  • 1.7V to 5.5V input voltage range.
  • Low dropout voltage of 135mV.
  • Compact 4-UDFN package.

NCP114AMX075TCG Applications

  • Ideal for battery-powered devices.
  • Suitable for noise-sensitive applications.
  • Used in portable electronics.
  • Provides stable voltage regulation.

NCP114AMX075TCG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

1.7 V to 5.5 V.

What is the package type?

4-UDFN Exposed Pad (1.0x1.0).

What is the operating temperature range?

-40°C to 85°C.

What is the maximum output current?

300 mA.

What is the dropout voltage?

135 mV typical at 300 mA.

What is the quiescent current?

50 µA typical.

What protection features does it have?

Over current and over temperature protection.
