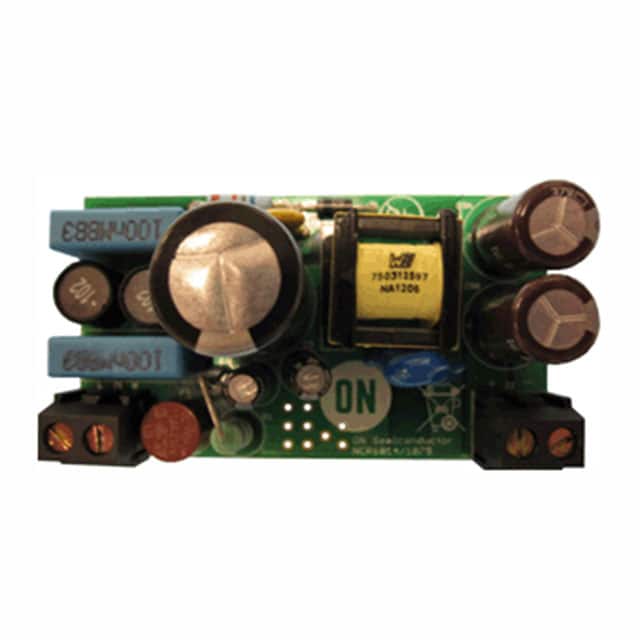

This evaluation board, the NCP1075SOTGEVB by On Semiconductor, is designed for universal input, off-line, constant voltage power supply applications. It features a 10-watt output and can be configured for different output voltages with minor component changes, defaulting to 12V at 0.8A.
The board utilizes a discontinuous mode flyback converter topology, incorporating the ON Semiconductor NCP1075 monolithic controller with an internal MOSFET. The input voltage range is specified as 180 to 270 VAC, and the output current capability is 800mA. The switching frequency operates at 100kHz.
Designed as a fully populated board, it serves as a primary side AC/DC solution. The output ripple at full load is specified to be less than 150 mV peak-to-peak. This evaluation kit is suitable for powering applications such as E-meters or white goods.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The evaluation board has an output power rating of 10 W.
The maximum output current is 800mA.
The input voltage range is 180 to 270 VAC.
The regulator topology is Flyback.
The switching frequency is 100kHz.
The default output voltage is 12V.
The output ripple is less than 150 mV peak-to-peak at full load.
