Mfr Part #:

NCP1072STAT3G

Name: NCP1072STAT3G
Brand: On Semiconductor
SKU: NCP1072STAT3G

Mfr Name: On Semiconductor

Description:

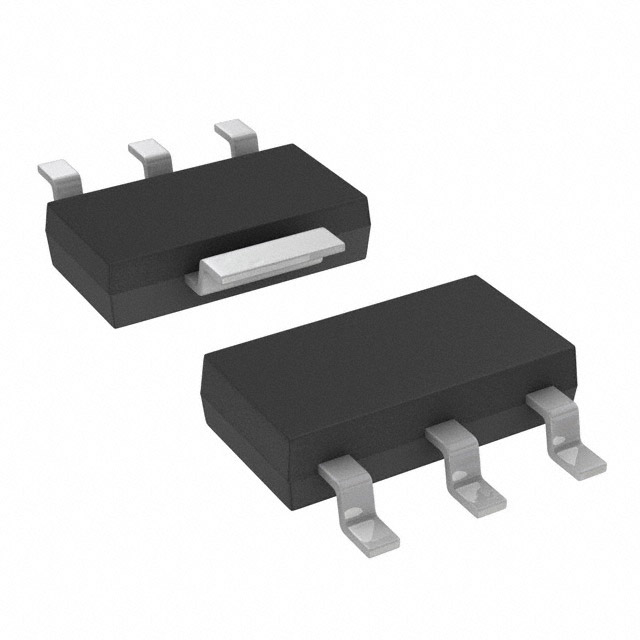

IC OFFLINE SWITCH SOT223-4

Stock on Request

NCP1072STAT3G Description

Short technical summary and product information.

IC OFFLINE SWITCH SOT223-4

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	AC DC Converters, Offline Switches
Manufacturer Name	On Semiconductor
Control Features	Soft Start
Duty Cycle	69%
Fault Protection	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Frequency	65kHz
Internal Switch(s)	Yes
Mounting Type	Surface Mount
Operating Temperature	150°C (TJ)
Output Isolation	Isolated
Power (Watts)	19 W
Supplier Device Package	SOT-223 (TO-261)
Topology	Flyback
Voltage	6.3V ~ 10V
