NCP1031MNTXG The ON Semiconductor NCP1031MNTXG is an offline switch IC designed for AC DC conversion. It operates within a 7.6V to 16V input voltage range and supports frequencies up to 1MHz.
Mfr Part #:

NCP1031MNTXG

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCP1031MNTXG is an offline switch IC designed for AC DC conversion. It operates within a 7.6V to 16V input voltage range and supports frequencies up to 1MHz.
✓ Total Stock: 503,884 pcs
$ Price Range: $0.75

NCP1031MNTXG Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCP1031MNTXG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Duty Cycle
Fault Protection
Frequency
Internal Switch(s)
Mounting Type
Operating Temperature
Output Isolation
Power (Watts)
SVHC Present
Supplier Device Package
Supplier Package
Topology
Voltage
View Similar Products (0)

NCP1031MNTXG Description

Short technical summary and product information.

The NCP1031MNTXG from ON Semiconductor is an integrated circuit designed for AC DC conversion, functioning as an offline switch. This component is suitable for applications requiring a power output of up to 6W.



Key electrical specifications include an operating voltage range of 7.6V to 16V and a switching frequency capability of up to 1MHz. The device features frequency control for its operation and includes fault protection mechanisms such as current limiting and over-temperature protection. It supports various topologies including Boost, Flyback, and Forward, with output isolation being either. The internal switch is integrated, simplifying design.

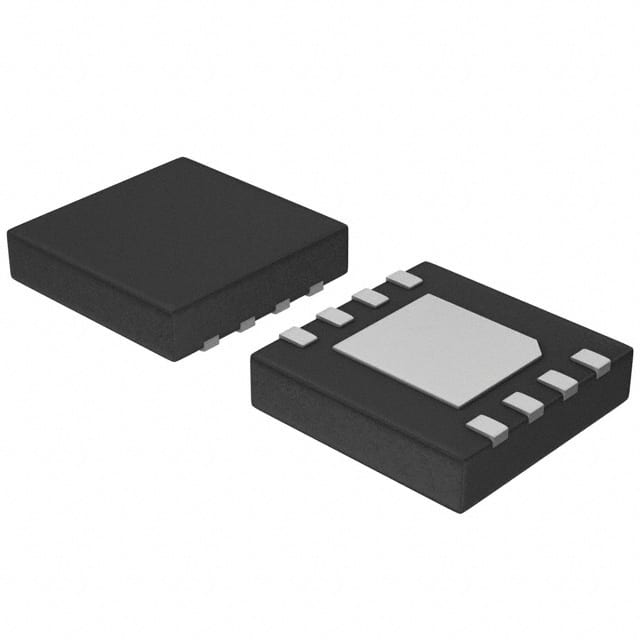

This IC is housed in an 8-DFN (4x4) package with an exposed pad, designed for surface mounting. The operating temperature range is -40°C to 150°C (TJ). The duty cycle is rated at 75%.



This part is categorized under AC DC Converters and Offline Switches within the Power Management (PMIC) product group.

NCP1031MNTXG Quick Information

Product Type: AC DC Converters, Offline Switches
Canonical Name: NCP1031MNTXG Offline Switch IC
Subcategory: Offline Switches

NCP1031MNTXG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NCP1031MNTXG Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCP1031MNTXG Features

  • Offline switch IC for AC DC conversion.
  • Wide input voltage range of 7.6V to 16V.
  • High switching frequency up to 1MHz.
  • Integrated fault protection features.
  • Surface mount 8-DFN exposed pad package.

NCP1031MNTXG Applications

  • Suitable for AC DC power supplies.
  • Used in power management circuits.
  • Ideal for compact electronic designs.
  • Applications requiring frequency control.

NCP1031MNTXG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the NCP1031MNTXG?

7.6V to 16V.

What is the maximum switching frequency?

Up to 1 MHz.

What is the output power rating?

6 W.

What topologies does the NCP1031MNTXG support?

Boost, flyback, and forward.

What is the operating temperature range?

-40°C to 150°C (junction temperature).

What package is the NCP1031MNTXG available in?

8-VDFN exposed pad (8-DFN 4x4) surface mount.

What fault protection features are included?

Current limiting and over temperature protection.
