NCN1154MUTAG The ON Semiconductor NCN1154MUTAG is a DP3T switch IC designed for combined audio, USB 2.0 high-speed data, and UART applications. It supports negative signal swing down to -2V.
Mfr Part #:

NCN1154MUTAG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NCN1154MUTAG is a DP3T switch IC designed for combined audio, USB 2.0 high-speed data, and UART applications. It supports negative signal swing down to -2V.
✓ Total Stock: 8,178 pcs
$ Price Range: $1.20

NCN1154MUTAG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
8,178 pcs
On Request
8178 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCN1154MUTAG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bandwidth
Features
Lead Spacing
Mounting Type
Number of Channels
On
Operating Temperature
Operating Voltage
Supplier Device Package
Supplier Package
Supply Current
Switch Circuit
Voltage
View Similar Products (0)

NCN1154MUTAG Description

Short technical summary and product information.

The ON Semiconductor NCN1154MUTAG is a versatile DP3T switch IC suitable for applications requiring a single port for high-speed data or audio signals. It is compliant with USB 2.0, USB 1.1, and USB 1.0 standards across all channels.



This switch is capable of handling negative voltage signals, allowing for swings as low as -2V below ground on the R/L audio channels. It incorporates shunt resistors on the audio ports, which activate when the audio channel is off to provide a safe discharge path to ground, effectively reducing pop and click noise in audio systems. The device operates within a supply voltage range of 2.7V to 5V and features 1.8V compatible control pins.

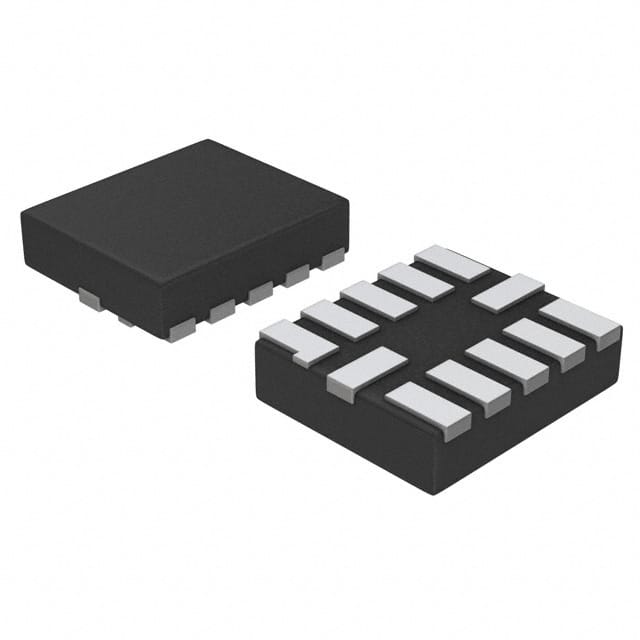

With a high bandwidth of 820 MHz on the D+/D- lines and an on-resistance of 7.5 Ohms, the NCN1154MUTAG ensures efficient signal transmission. It operates across a temperature range of -40°C to 85°C. The device is housed in a compact 12-UQFN package, measuring 2.0x1.7x0.5mm, making it ideal for space-constrained portable devices.



Typical applications include micro or mini USB ports in mobile phones, tablets, bar code scanners, and other portable electronic devices where sharing a single connector for high-speed data or audio is necessary.

NCN1154MUTAG Quick Information

Product Type: USB Switch IC
Series: NCN1154
Canonical Name: NCN1154 DP3T USB 2.0, UART, and Audio Switch
Subcategory: USB Switch ICs

NCN1154MUTAG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NCN1154MUTAG Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCN1154MUTAG Features

  • DP3T switch for audio, USB, and UART.
  • Supports USB 2.0, 1.1, and 1.0 standards.
  • Handles negative signal swings down to -2V.
  • Integrated shunt resistors reduce audio noise.
  • Compact 12-UQFN package for space saving.

NCN1154MUTAG Applications

  • Ideal for micro or mini USB applications.
  • Enables shared data and audio on one port.
  • Suitable for mobile phones and tablets.
  • Used in portable bar code scanners.
  • Designed for general portable devices.

NCN1154MUTAG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the NCN1154MUTAG?

The operating supply voltage range is 2.7 V to 5 V.

What type of package is the NCN1154MUTAG in?

The NCN1154MUTAG is supplied in a 12-UQFN package.

What is the operating temperature range for this USB switch IC?

The operating temperature range is -40°C to 85°C.

Is the NCN1154MUTAG RoHS compliant?

The RoHS status is Compliant.

What is the on-resistance of the NCN1154MUTAG?

The maximum on-resistance is 7.5 Ohms.

What applications is the NCN1154MUTAG suitable for?

It is suitable for audio, UART, and USB applications, commonly found in portable devices like mobile phones and tablets.

Does the NCN1154MUTAG support negative signal swings?

Yes, it is capable of passing signals with negative voltages as low as -2 V on the R/L channel.
