NCD98011XMXTAG The NCD98011XMXTAG is a 12-bit Analog-to-Digital Converter (ADC) from onsemi. It offers a 2 MSPS sample rate and operates with low power consumption.
Mfr Part #:

NCD98011XMXTAG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The NCD98011XMXTAG is a 12-bit Analog-to-Digital Converter (ADC) from onsemi. It offers a 2 MSPS sample rate and operates with low power consumption.
✓ Total Stock: 3,962 pcs
$ Price Range: $8.35

NCD98011XMXTAG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,962 pcs
On Request
3962 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NCD98011XMXTAG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Data Interface
Halogen Free
Input Type
Lead Spacing
Length
Mounting Type
Number of Bits
Number of Inputs
Operating Temperature
Power Consumption
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage
Width
View Similar Products (0)

NCD98011XMXTAG Description

Short technical summary and product information.

The NCD98011XMXTAG is a 12-bit successive-approximation analog-to-digital converter (ADC) from onsemi. Designed for low power and speed, it can achieve a sample rate of 2 MSPS while consuming less than 1 mW of power. The device features a fully differential input and an SPI-compatible interface for straightforward data acquisition.

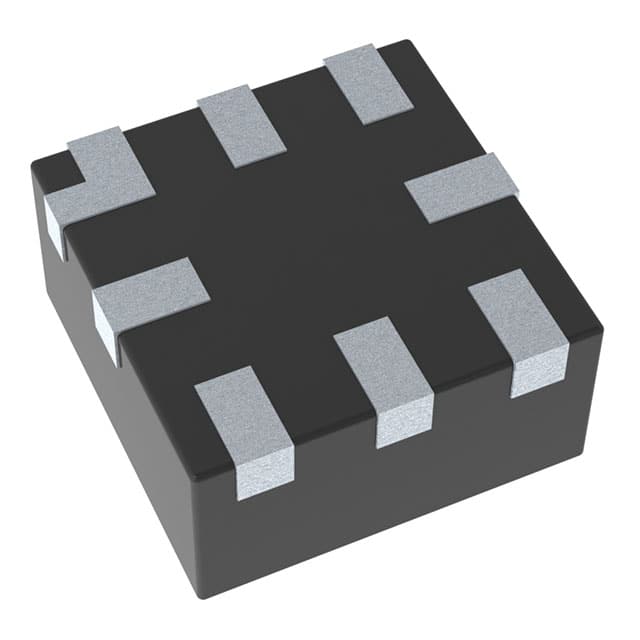

This ADC supports an input voltage range of 1.65 V to 3.3 V for both analog and digital supplies. It is pre-calibrated and comes in a small 8-X2QFN package, making it suitable for space-constrained applications. The operating temperature range is from -40°C to 120°C.



Typical applications include low-power data acquisition, battery-powered equipment, level sensors, ultrasonic flow meters, motor controls, wearable fitness devices, and portable medical equipment. The NCD98011XMXTAG is Pb-free, Halogen Free/BFR Free, and RoHS compliant.

NCD98011XMXTAG Quick Information

Product Type: Analog to Digital Converter
Canonical Name: 12-Bit Low Power SAR ADC
Subcategory: Data Acquisition

NCD98011XMXTAG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NCD98011XMXTAG Estimated Pricing

Qty Low High
1+ $8.35 $8.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

NCD98011XMXTAG Features

  • 12-bit resolution for precise conversion.
  • 2 MSPS sample rate for high-speed data.
  • Nanowatt power consumption for efficiency.
  • Fully differential input for signal integrity.
  • SPI interface for easy integration.

NCD98011XMXTAG Applications

  • Ideal for low-power data acquisition.
  • Suitable for battery-powered equipment.
  • Used in portable medical devices.
  • Applicable for wearable fitness trackers.
  • Designed for level sensor applications.

NCD98011XMXTAG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resolution of the NCD98011XMXTAG?

The NCD98011XMXTAG has a resolution of 12 bits.

What is the maximum sample rate of this ADC?

The NCD98011XMXTAG can achieve a sample rate of 2 MSPS.

What is the operating temperature range for the NCD98011XMXTAG?

The operating temperature range is -40°C to 120°C.

What package type is the NCD98011XMXTAG supplied in?

The NCD98011XMXTAG is supplied in an 8-X2QFN package.

Is the NCD98011XMXTAG RoHS compliant?

The NCD98011XMXTAG is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
