| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
190 pcs
|
190 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| DC Resistance | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tape & Reel | |
| Width |

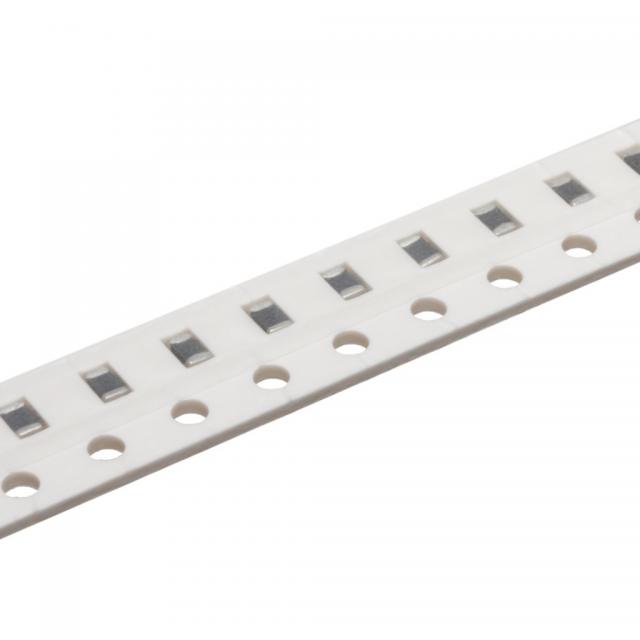

This NIC Components NCB-H0805A300TR500F is a surface-mount EMI filter ferrite core designed for noise suppression in electronic circuits. It comes in a compact 0805 SMD package, making it suitable for space-constrained applications.
The component provides a nominal impedance of 30 Ohms at a frequency of 100 MHz, effectively filtering out unwanted electromagnetic interference. It is rated for a maximum continuous current of 5 Amperes and has a low DC resistance of 0.01 Ohms. The operating temperature range is from -40°C to +125°C, ensuring reliable performance in various environmental conditions.
With external dimensions of 2 mm in length, 1.25 mm in width, and 0.9 mm in height, this ferrite core is designed for standard surface-mount assembly processes. It is RoHS compliant, indicating adherence to environmental regulations regarding hazardous substances.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 30 Ohms at 100 MHz.
The maximum current rating is 5A.
It operates within a temperature range of -40°C to +125°C.
The external dimensions are 2 mm length, 1.25 mm width, and 0.9 mm height.
It is an 0805 SMD package.
