NC7WZ08L8X NC7WZ08L8X is a dual 2-input AND gate from On Semiconductor. It operates from 1.65V to 5.5V with a maximum propagation delay of 3.7ns at 5V, 50pF.
Mfr Part #:

NC7WZ08L8X

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
NC7WZ08L8X is a dual 2-input AND gate from On Semiconductor. It operates from 1.65V to 5.5V with a maximum propagation delay of 3.7ns at 5V, 50pF.
✓ Total Stock: 516,571 pcs
$ Price Range: $0.22

NC7WZ08L8X Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
516,571 pcs
On Request
516571 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NC7WZ08L8X Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Logic Type
Max Propagation Delay @ V, Max CL
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Supplier Device Package
Voltage
View Similar Products (0)

NC7WZ08L8X Description

Short technical summary and product information.

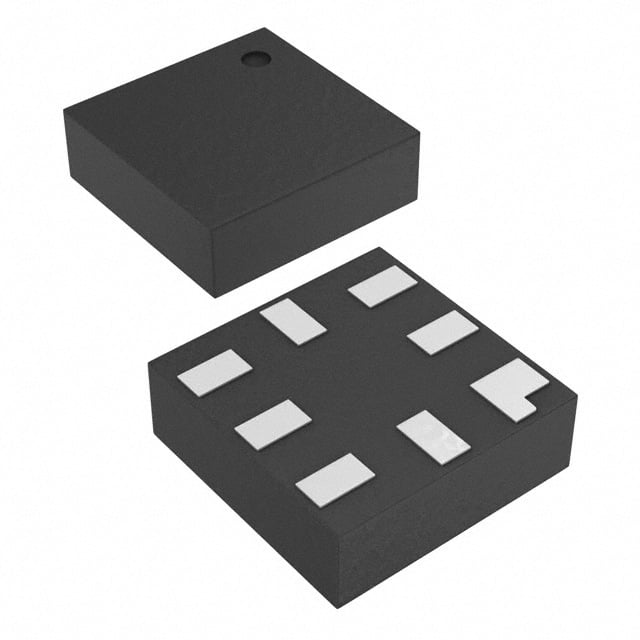

The NC7WZ08L8X is a dual 2-input AND gate integrated circuit from On Semiconductor. It contains two independent AND gates, each with two inputs, providing the logical AND function. This high-speed CMOS logic gate is designed for low-voltage operation.



Key electrical specifications include a wide operating voltage range of 1.65V to 5.5V, making it suitable for battery-powered and mixed-voltage applications. The maximum propagation delay is 3.7ns at 5V with a 50pF load, ensuring fast signal processing. Each output can sink or source up to 32mA.



The device is housed in an 8-UFQFN package, specifically the 8-MicroPak™, which is a compact surface-mount package ideal for space-constrained designs. It operates over a temperature range of -40°C to 85°C.



The NC7WZ08L8X is commonly used in general-purpose logic applications, signal gating, and control circuits. Its low power consumption and small footprint make it suitable for portable electronics.

NC7WZ08L8X Quick Information

Product Type: AND Gate IC
Series: NC7WZ08
Canonical Name: NC7WZ08L8X AND Gate IC, 2-Channel, 2-Input, 8-MicroPak
Subcategory: Gates and Inverters

NC7WZ08L8X Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NC7WZ08L8X Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

NC7WZ08L8X Features

  • Dual 2-input AND gate logic function.
  • Wide operating voltage range 1.65V to 5.5V.
  • Fast propagation delay of 3.7ns at 5V.
  • High output drive current up to 32mA.
  • Compact 8-MicroPak surface-mount package.

NC7WZ08L8X Applications

  • Used in signal gating and logic control circuits.
  • Ideal for battery-powered portable devices.
  • Suitable for high-speed data processing systems.
  • Employed in level shifting and interface applications.

NC7WZ08L8X FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the NC7WZ08L8X?

1.65V to 5.5V.

What package does the NC7WZ08L8X come in?

8-UFQFN (8-MicroPak™).

What is the operating temperature range?

-40°C to 85°C.

What logic function does the NC7WZ08L8X perform?

AND gate.

How many inputs does each gate have?

Each of the two gates has two inputs.

What is the maximum propagation delay?

3.7ns at 5V, 50pF.

What is the output current capability?

32mA per output.
