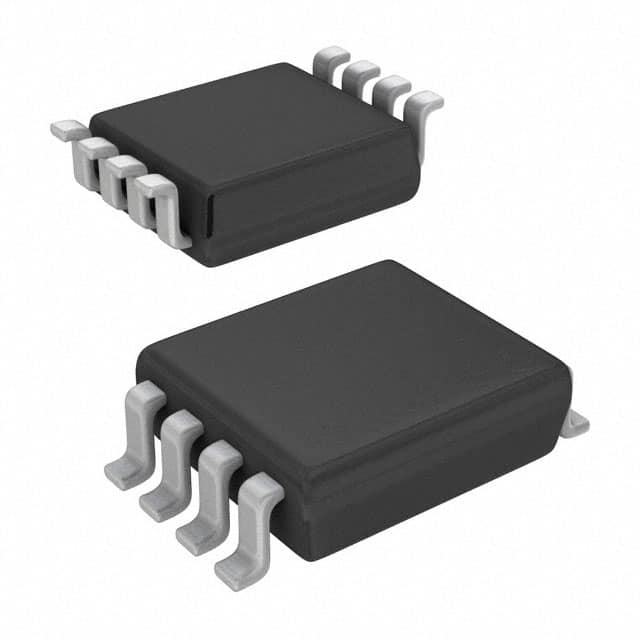

NC7WB66K8X The ON Semiconductor NC7WB66K8X is a dual SPST-NO analog switch designed for versatile signal routing. It operates from 1.65V to 5.5V.
Mfr Part #:

NC7WB66K8X

Available from 5 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NC7WB66K8X is a dual SPST-NO analog switch designed for versatile signal routing. It operates from 1.65V to 5.5V.
✓ Total Stock: 646,791 pcs
$ Price Range: $0.30

NC7WB66K8X Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NC7WB66K8X Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Channel
Channel Capacitance (CS(off), CD(off))
Crosstalk
Current
Lead Spacing
Mounting Type
Multiplexer
Number of Circuits
On
Operating Temperature
Supplier Device Package
Switch Circuit
Switch Time (Ton, Toff) (Max)
Tape & Reel
Voltage
View Similar Products (0)

NC7WB66K8X Description

Short technical summary and product information.

The ON Semiconductor NC7WB66K8X is a dual Single Pole Single Throw (SPST) normally open analog switch. It is designed for applications requiring efficient signal switching with low on-resistance and minimal crosstalk.



This device operates over a wide voltage range of 1.65V to 5.5V, making it suitable for various system designs. Key electrical characteristics include an on-resistance of 10 Ohms and a channel resistance of 200 mOhm. It offers a bandwidth of 300MHz and a crosstalk of -70dB at 10MHz, ensuring signal integrity.



The NC7WB66K8X features a fast switch time with typical values of 3.2ns for turn-on and 4.1ns for turn-off. It is packaged in an 8-VFSOP (US8) surface-mount package, facilitating integration into compact electronic assemblies. The operating temperature range is from -40°C to 85°C (TA).

NC7WB66K8X Quick Information

Product Type: Analog Switch
Canonical Name: NC7WB66K8X Dual SPST-NO Analog Switch
Subcategory: Analog Switches, Multiplexers, Demultiplexers

NC7WB66K8X Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NC7WB66K8X Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

NC7WB66K8X Features

  • Dual SPST-NO analog switch.
  • Wide 1.65V to 5.5V operating voltage.
  • Low 10 Ohm on-resistance.
  • 300MHz bandwidth for signal integrity.
  • Compact 8-VFSOP surface mount package.

NC7WB66K8X Applications

  • Ideal for signal routing applications.
  • Suitable for low-voltage systems.
  • Used in portable electronic devices.
  • Effective in data acquisition systems.

NC7WB66K8X FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the NC7WB66K8X?

The NC7WB66K8X operates from 1.65V to 5.5V.

What is the on-resistance of the NC7WB66K8X?

The on-resistance is 10 Ohms.

What is the package type for the NC7WB66K8X?

The NC7WB66K8X is supplied in an 8-VFSOP (0.091", 2.30mm Width) package.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C (TA).
