| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
667,114 pcs
|
667114 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Logic Type | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Output Type | |
| Schmitt Trigger Input | |
| Supplier Device Package | |
| Voltage | |
| Voltage Supply |
The NC7SZ57FHX from On Semiconductor is a versatile logic gate designed for configurable multiple function applications. This device features 1 circuit with 3 inputs and a single-ended output type. It operates within a wide supply voltage range of 1.65V to 5.5V, making it suitable for various digital systems.

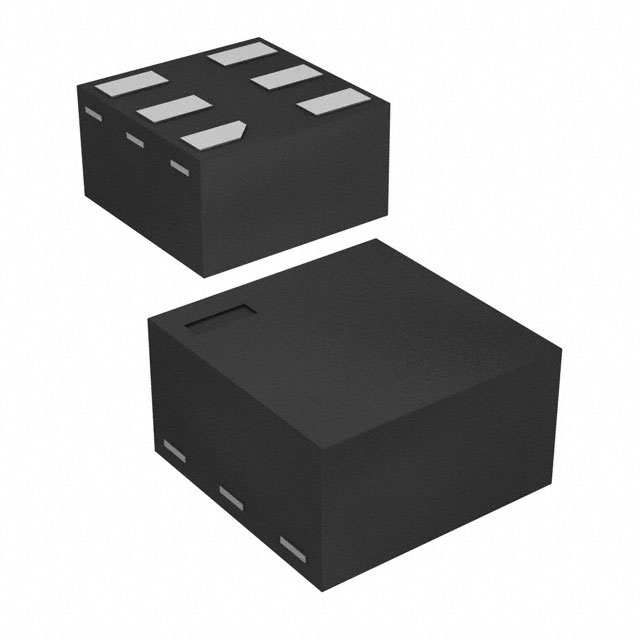

The gate is designed for surface mounting and comes in a compact 6-UFDFN package, specifically utilizing the 6-MicroPak2™ supplier device package. Its operating temperature range is from -40°C to 85°C, ensuring reliable performance in diverse environmental conditions. The NC7SZ57FHX offers an output current capability of 32mA for both high and low states. It does not feature Schmitt trigger inputs, simplifying its integration into standard logic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.65V to 5.5V.
6-UFDFN (6-MicroPak2).
-40°C to 85°C.
3 inputs.
Single-ended.
Configurable multiple function.
Surface mount.
