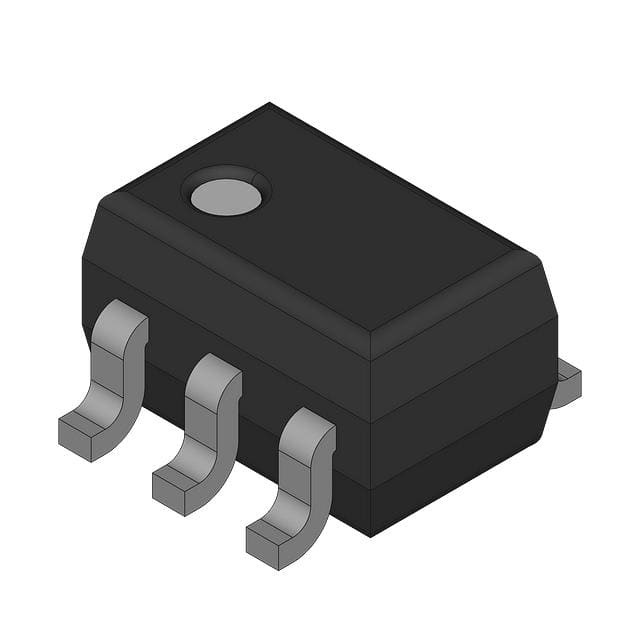

NC7SZ02P5X The ON Semiconductor NC7SZ02P5X is a single NOR gate with a 1.65V to 5.5V operating voltage range. It features a fast propagation delay of 4.3ns at 5V and 50pF.
Mfr Part #:

NC7SZ02P5X

Available from 8 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NC7SZ02P5X is a single NOR gate with a 1.65V to 5.5V operating voltage range. It features a fast propagation delay of 4.3ns at 5V and 50pF.
✓ Total Stock: 753,791 pcs
$ Price Range: $0.22

NC7SZ02P5X Available from 8 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NC7SZ02P5X Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Logic Type
Max Propagation Delay @ V, Max CL
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
SVHC Present
Supplier Device Package
Voltage
View Similar Products (0)

NC7SZ02P5X Description

Short technical summary and product information.

The NC7SZ02P5X from ON Semiconductor is a high-performance logic gate belonging to the NOR Gate family. This device operates within a wide voltage range of 1.65V to 5.5V, making it suitable for various applications.



Key electrical characteristics include a maximum propagation delay of 4.3ns at 5V with a 50pF load capacitance, and a current draw of 32mA. The component is designed for surface mounting and comes in a compact SC-70-5 package.



With an operating temperature range of -40°C to 85°C, the NC7SZ02P5X is built for reliability in diverse environmental conditions. Its single circuit configuration with two inputs makes it a versatile component for digital logic designs.

NC7SZ02P5X Quick Information

Product Type: Logic Gate
Series: NC7SZ02
Canonical Name: NC7SZ02P5X NOR Gate
Subcategory: Gates and Inverters

NC7SZ02P5X Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NC7SZ02P5X Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

NC7SZ02P5X Features

  • Single NOR gate with two inputs.
  • Wide operating voltage from 1.65V to 5.5V.
  • Fast propagation delay of 4.3ns at 5V.
  • Surface Mount package for compact designs.
  • Operates from -40°C to 85°C.

NC7SZ02P5X Applications

  • Used in general-purpose logic circuits.
  • Suitable for battery-powered devices.
  • Ideal for signal inversion and gating.
  • Can be used in level-shifting applications.

NC7SZ02P5X FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the NC7SZ02P5X?

1.65V to 5.5V.

What package is the NC7SZ02P5X available in?

SC-70-5 (also 5-TSSOP, SOT-353).

What is the operating temperature range of the NC7SZ02P5X?

-40°C to 85°C.

How many inputs does the NC7SZ02P5X have?

2 inputs.

How many circuits are in the NC7SZ02P5X?

1 circuit.

What is the propagation delay of the NC7SZ02P5X?

Maximum 4.3ns at 5V with 50pF load.
