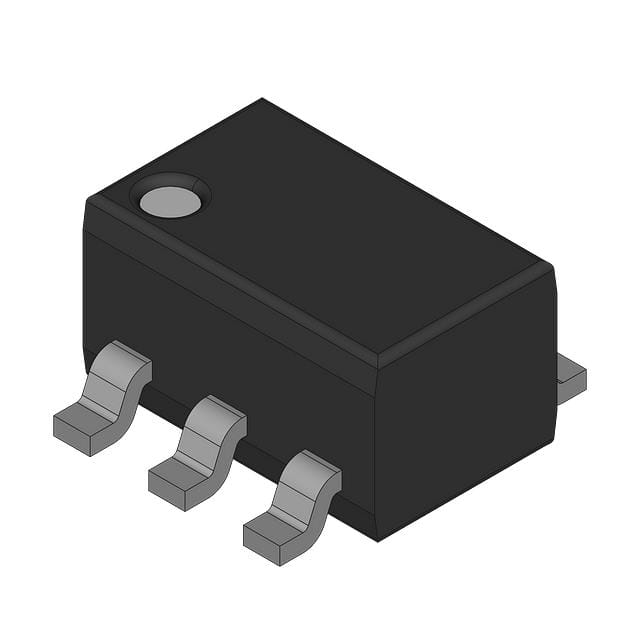

NC7SV57P6X The On Semiconductor NC7SV57P6X is a universal configurable logic gate designed for 0.9 V to 3.6 V VCC operation. It features a tiny footprint and supports various logic functions.
Mfr Part #:

NC7SV57P6X

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NC7SV57P6X is a universal configurable logic gate designed for 0.9 V to 3.6 V VCC operation. It features a tiny footprint and supports various logic functions.
✓ Total Stock: 4,838 pcs
$ Price Range: $0.39

NC7SV57P6X Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
4,676 pcs
On Request
4676 pcs On Request 1 On Request On Request 1552+ On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
162 pcs
On Request
162 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NC7SV57P6X Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Halogen Free
Logic Type
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Output Type
Propagation Delay
SVHC Present
Schmitt Trigger Input
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

NC7SV57P6X Description

Short technical summary and product information.

The NC7SV57P6X from On Semiconductor is a versatile, configurable logic gate belonging to the TinyLogic ULP-A family. It is designed for low-voltage applications, operating from 0.9 V to 3.6 V.



This device offers a 2.4 ns propagation delay at 3.3 V and can source or sink 24 mA at 3.3 V. Its inputs and outputs are over-voltage tolerant up to 3.6 V, and it includes IOFF support for partial power-down protection. The NC7SV57P6X is available in a compact SC-88 (SC-70-6) surface-mount package, making it suitable for space-constrained designs.



With its configurable nature, the NC7SV57P6X can implement multiple 2-input logic functions, including AND, NAND, OR, NOR, and XNOR, by simply altering pin connections. This flexibility allows designers to optimize board space and component count. The device operates within a temperature range of -40°C to 85°C.

NC7SV57P6X Quick Information

Product Type: Configurable Logic Gate
Series: TinyLogic ULP-A
Canonical Name: NC7SV57P6X Universal Configurable Logic Gate
Subcategory: Configurable Logic Gate

NC7SV57P6X Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NC7SV57P6X Estimated Pricing

Qty Low High
1+ $0.39 $0.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

NC7SV57P6X Features

  • Universal configurable logic gate.
  • Operates from 0.9 V to 3.6 V.
  • 2.4 ns propagation delay at 3.3 V.
  • Source/sink 24 mA at 3.3 V.
  • Compact SC-88 surface-mount package.

NC7SV57P6X Applications

  • Ideal for low-voltage logic designs.
  • Suitable for space-constrained applications.
  • Flexible logic function implementation.
  • Power-sensitive electronic circuits.

NC7SV57P6X FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the NC7SV57P6X?

0.9V to 3.6V.

What is the package type of the NC7SV57P6X?

SC-88 (SC-70-6) surface mount package.

What is the operating temperature range?

-40°C to 85°C.

What is the propagation delay?

2.4ns typical at 3.3V.

What is the output current capability?

24mA source/sink at 3.3V.

Does the device support partial power-down protection?

Yes, it has IOFF support for partial power-down protection.

How many inputs does the device have?

3 inputs.
