| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Oscillator Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The NBXHBA019LN1TAG is a single and dual frequency crystal oscillator (XO) designed for 3.3V LVPECL clock generation applications. It utilizes a high Q fundamental crystal and a Phase Lock Loop (PLL) multiplier to provide selectable 125 MHz or 250 MHz outputs with ultra-low jitter and phase noise.

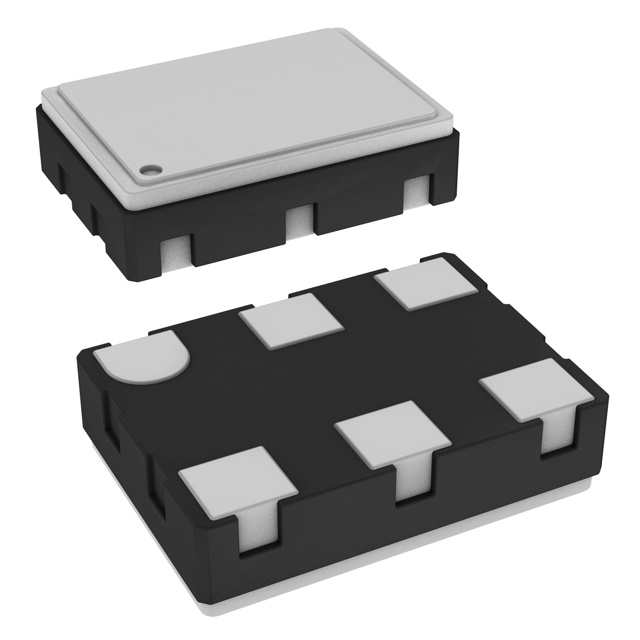

This device operates within a 3.3 V ±10% range and has a current consumption of 78 mA. It is housed in a hermetically sealed ceramic 6-CLCC (7x5 mm) SMD package, suitable for surface mounting.
Key specifications include ultra-low jitter and phase noise of 0.4 ps (12 kHz - 20 MHz) and a total frequency stability of ±50 PPM. The operating temperature range is -40°C to 85°C.
Applications for this oscillator include Ethernet, Gigabit Ethernet, Infiniband, and Base Stations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NBXHBA019LN1TAG offers selectable output frequencies of 125 MHz and 250 MHz.
The operating voltage range for the NBXHBA019LN1TAG is 2.97V to 3.63V.
The operating temperature range is -40°C to 85°C.
The NBXHBA019LN1TAG is supplied in a 6-CLCC (7x5 mm) package.
Yes, the NBXHBA019LN1TAG is RoHS3 Compliant.
