| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| DC Rated Voltage | |
| Height | |
| Input Resistance | |
| Lead Spacing | |
| Length | |
| Max Operating Temperature | |
| Max Pressure | |
| Max Supply Voltage | |
| Maximum Pressure | |
| Min Operating Temperature | |
| Min Supply Voltage | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Type | |
| Supply Current | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Width |

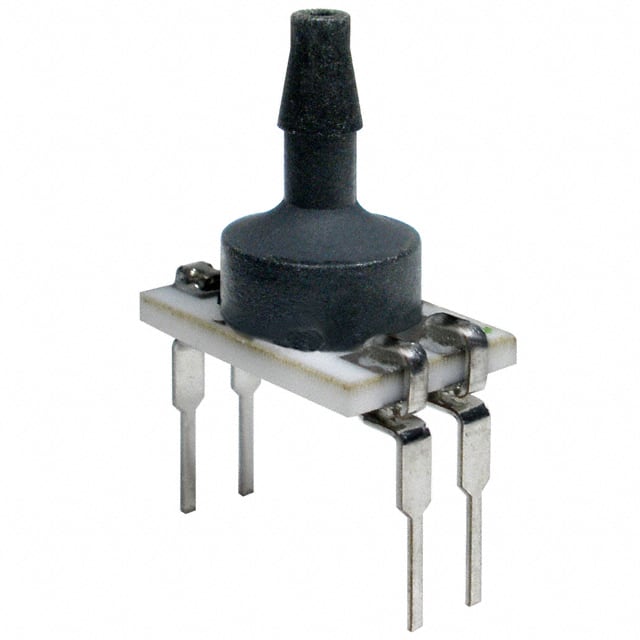

The Honeywell NBPDANN150PAUNV is an absolute pressure sensor designed for board mount applications. It operates within a pressure range of 150 PSI (1034.21kPa) and can withstand a maximum pressure of 240 PSI (1654.74kPa).
This sensor offers a high accuracy of ±0.25% and utilizes a Wheatstone Bridge output, providing an analog signal. The operating temperature range is from -40°C to 125°C. It requires a supply voltage between 1.8V and 12V, with a typical supply current of 1.5mA.
The NBPDANN150PAUNV is housed in a 4-DIP package with a barbed port style and a male tube port size of 0.08" (1.91mm). It is designed for through-hole mounting and features PC pin termination.
This component is noted as RoHS Not Compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure for the NBPDANN150PAUNV sensor is 150 PSI.
The accuracy of the NBPDANN150PAUNV pressure sensor is ±0.25%.
The output type of the NBPDANN150PAUNV sensor is a Wheatstone Bridge.
The operating temperature range for this sensor is -40°C to 125°C.
The supply voltage range for the NBPDANN150PAUNV is 1.8V to 12V.
The NBPDANN150PAUNV sensor is supplied in a 4-DIP package.
