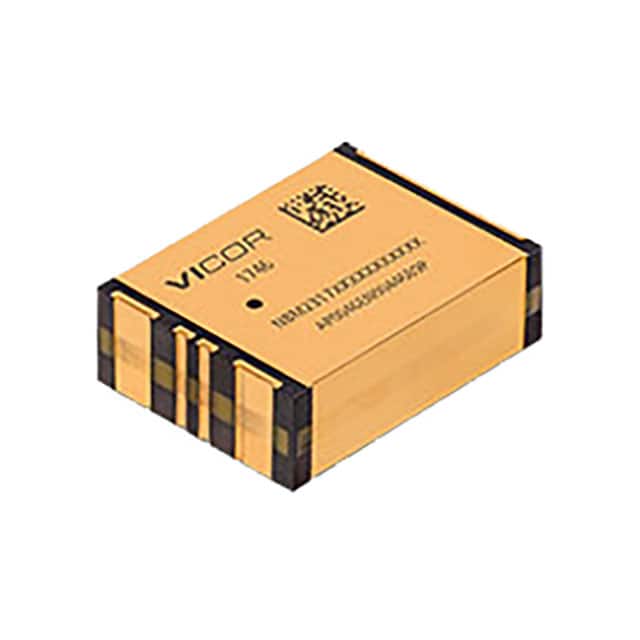

The NBM2317S60E1560T0R is a high-efficiency non-isolated bus converter module from Vicor. It features a fixed 1/4 conversion ratio and bidirectional operation, making it ideal for DC power distribution and energy storage applications.
Key electrical characteristics include a 40 to 60V input voltage range, output voltage from 10 to 15V (13.5V typical), and 60A continuous output current in step-down mode (100A transient for 2ms) and 15A continuous in step-up mode (25A transient). Maximum continuous output power is 800W (1kW peak for 2ms) with 97.9% peak efficiency and 4.5kW/in³ power density. Built-in protections include OCP, OTP, OVP, SCP, UVLO, hot-swap capability, and inrush current limiting.
The converter is housed in a surface-mount SM-ChiP package (6-SMD Module) measuring 22.83 x 17.34 x 7.42 mm and weighing 12g. It operates over a -40°C to 125°C temperature range. Typical applications include DC power distribution, high-performance computing, mild hybrid vehicles, automated test equipment, industrial systems, and bidirectional energy storage.
Note: This part is end-of-life according to the manufacturer datasheet; replacement part NBM2317S60D1565T0R is recommended for new designs.
40 to 60 VDC.
10 to 15 VDC, with a typical value of 13.5 VDC.
800W continuous, with 1kW peak for up to 2ms.
-40°C to +125°C.
Surface-mount 6-SMD Module (SM-ChiP package).
RoHS3 Compliant (low confidence, unverified).
97.9%.
