| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,736 pcs
|
4736 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,284 pcs
|
2284 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Current | |
| Data Rate (Max) | |
| Delay Time | |
| Input | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output | |
| Signal Conditioning | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The NB7NPQ7022MMUTXG from On Semiconductor is a versatile 2-port redriver, categorized under Interface - Signal Buffers, Repeaters, Splitters. This component is engineered to support high-speed data applications, specifically designed for USB interfaces.
Key electrical specifications include a wide operating voltage range of 3V to 3.6V and a maximum data rate of 10Gbps. It features differential inputs and outputs, with input equalization for signal conditioning. The device has a typical input capacitance of 1.25 pF and draws a supply current of 114mA.

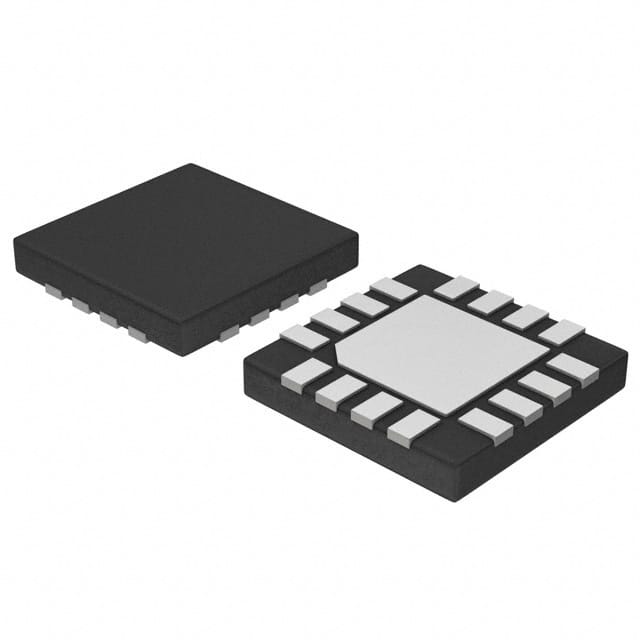

Packaged in a compact 16-UQFN (3x3) form factor with an exposed pad, the NB7NPQ7022MMUTXG is designed for surface mount installation. It operates within a temperature range of -40°C to 85°C (TA). The component is RoHS3 compliant, indicating adherence to environmental standards.
This redriver is suitable for applications requiring signal integrity enhancement in high-speed serial data transmission, such as in USB ports and other data communication systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.12 | $6.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the NB7NPQ7022MMUTXG is between 3V and 3.6V.
The NB7NPQ7022MMUTXG is available in a 16-UQFN (3x3) package, with a package/case designation of 16-UFQFN Exposed Pad.
The operating temperature range for the NB7NPQ7022MMUTXG is -40°C to 85°C (TA).
Yes, the NB7NPQ7022MMUTXG is RoHS3 compliant.
The NB7NPQ7022MMUTXG supports a maximum data rate of 10Gbps.
The NB7NPQ7022MMUTXG offers input equalization for signal conditioning.
