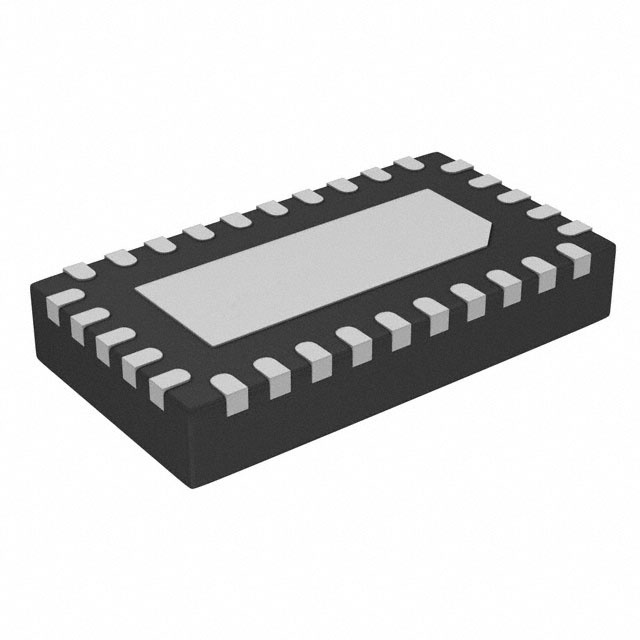

The NB7NPQ1102MMTTWG is a high-performance single-port linear redriver from On Semiconductor, engineered for USB 3.1 Gen 1 and USB 3.1 Gen 2 applications. This device supports both 5 Gbps and 10 Gbps data rates, compensating for signal integrity degradation caused by PCB traces and cables through programmable equalization and flat gain amplification.
Operating from a 3.3 V supply, the NB7NPQ1102MMTTWG is specified for the industrial temperature range of -40°C to 85°C. It features automatic receiver detection, integrated input and output termination, and pin-adjustable equalization and output swing. The redriver is housed in a compact 2.5 x 4.5 mm WQFN30 package, making it suitable for space-constrained designs.
Key features include support for USB 3.1 Super Speed Gen1 & Gen2 standards, CML I/O's, auto slumber mode for power management, and hot-plug capability. ESD protection is rated at ±4 kV HBM. This device is Pb-Free.
Typical applications include USB 3.1 Type-A and Type-C signal routing in mobile phones, tablets, computers, laptops, external storage devices, docking stations, active cables, and gaming consoles.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.12 | $6.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the NB7NPQ1102MMTTWG is 3.3 V.
The NB7NPQ1102MMTTWG supports a maximum data rate of 10 Gbps.
The operating temperature range for the NB7NPQ1102MMTTWG is -40°C to 85°C.
The NB7NPQ1102MMTTWG is supplied in a 30-WQFN Exposed Pad package.
Yes, the NB7NPQ1102MMTTWG is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the NB7NPQ1102MMTTWG is 1 (Unlimited).
