NB7NPQ1004MMTTWG The ON Semiconductor NB7NPQ1004MMTTWG is a 4-channel linear redriver designed for USB 3.1 Gen 1 and Gen 2 applications. It supports data rates up to 10Gbps.
Mfr Part #:

NB7NPQ1004MMTTWG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NB7NPQ1004MMTTWG is a 4-channel linear redriver designed for USB 3.1 Gen 1 and Gen 2 applications. It supports data rates up to 10Gbps.
✓ Total Stock: 530,436 pcs
$ Price Range: $6.12

NB7NPQ1004MMTTWG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
530,436 pcs
On Request
530436 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NB7NPQ1004MMTTWG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Data Rate (Max)
Delay Time
Input
Input Type
Lead Spacing
Mounting Type
Number of Channels
Operating Temperature
Output
Signal Conditioning
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Type
Voltage
View Similar Products (0)

NB7NPQ1004MMTTWG Description

Short technical summary and product information.

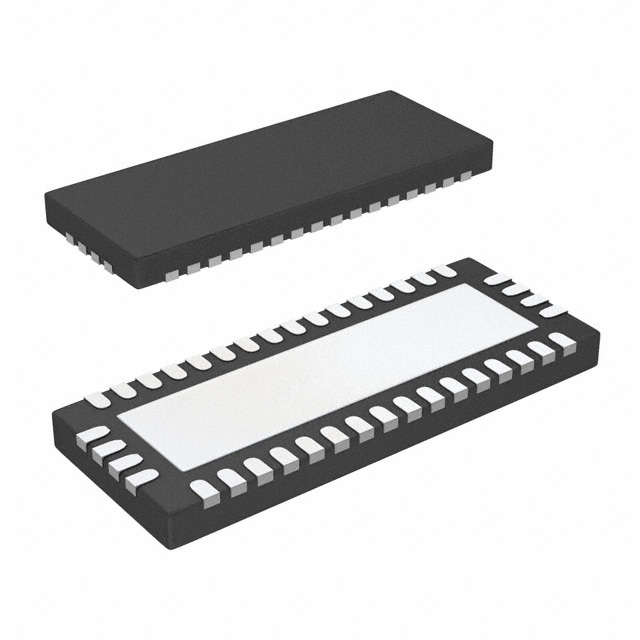

The NB7NPQ1004MMTTWG from ON Semiconductor is a high-performance linear redriver engineered for USB 3.1 Gen 1 and Gen 2 interfaces, supporting both 5 Gbps and 10 Gbps data rates. This device compensates for signal integrity degradation caused by PCB traces and cables by employing programmable equalization at the input receiver and flat gain amplification at the output transmitter.



Key features include a 3.3V power supply, automatic receiver detection, integrated input/output termination, and pin-adjustable equalization and gain for each channel. It utilizes CML differential I/O and offers auto slumber mode for power management. The redriver is hot-plug capable and provides ±2 kV HBM ESD protection.



Designed for applications such as USB Type-A and Type-C signal routing, mobile phones, tablets, computers, laptops, external storage, docking stations, and gaming consoles, the NB7NPQ1004MMTTWG is housed in a compact 3.5 x 9 mm WQFN42 package. It operates within an industrial temperature range of -40°C to 85°C and is a Pb-Free device.

NB7NPQ1004MMTTWG Quick Information

Product Type: Linear Redriver
Canonical Name: NB7NPQ1004MMTTWG Linear Redriver
Subcategory: Redriver

NB7NPQ1004MMTTWG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NB7NPQ1004MMTTWG Estimated Pricing

Qty Low High
1+ $6.12 $6.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

NB7NPQ1004MMTTWG Features

  • Supports USB 3.1 Gen 1 and Gen 2.
  • Operates at 5 Gbps and 10 Gbps.
  • 4 independent channels provided.
  • Programmable equalization and gain.
  • Surface mount 42-WQFN package.

NB7NPQ1004MMTTWG Applications

  • USB 3.1 Type-A and Type-C routing.
  • Mobile phones and tablets.
  • Computers and laptops.
  • External storage devices.
  • Docking stations and dongles.

NB7NPQ1004MMTTWG FAQs

5 frequently asked questions generated from this part’s specifications.
What data rates does the NB7NPQ1004MMTTWG support?

The NB7NPQ1004MMTTWG supports both 5 Gbps and 10 Gbps data rates.

What is the operating voltage for this redriver?

The operating voltage range is 3V to 3.6V, with a nominal value of 3.3V.

What type of package is the NB7NPQ1004MMTTWG in?

It is supplied in a 42-WQFN (3.5x9mm) package with an exposed pad.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

How many channels does this redriver have?

The NB7NPQ1004MMTTWG has 4 channels.
