| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,835 pcs
|
17835 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Logic Type | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay | |
| Schmitt Trigger Input | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The NB7L86AMNG from On Semiconductor is a multi-function differential logic gate belonging to the GigaComm /C0116 family. This high-performance Silicon Germanium device can be configured as an AND/NAND, OR/NOR, XOR/XNOR, or a 2:1 multiplexer.
Key electrical characteristics include a maximum input clock frequency exceeding 8 GHz and a maximum input data rate over 8 Gb/s. It offers a typical propagation delay of 165 ps and rise/fall times of 40 ps. The device features selectable swing PECL or NECL outputs and a selectable output level ranging from 0 to 800 mV peak-to-peak in five discrete steps. Differential inputs incorporate internal 50 Ω termination resistors and accept various logic levels including NECL, PECL, LVCMOS/LVTTL, CML, or LVDS.

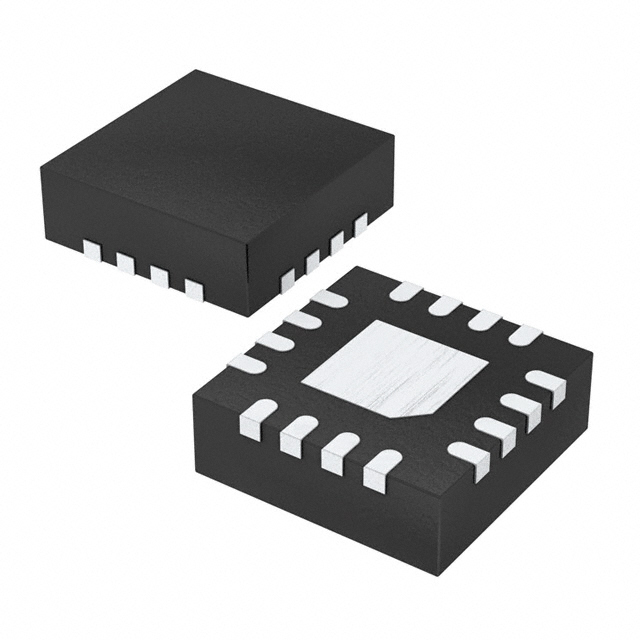

The NB7L86AMNG operates with a VCC range of 2.375 V to 3.465 V (for PECL output) or VEE range of -2.375 V to -3.465 V (for NECL output). It is housed in a compact 3x3 mm 16-pin QFN package, suitable for surface mounting. The device also includes input default circuitry for stable outputs under open input conditions.
This Pb-Free device is designed for applications requiring high-speed signal integrity and flexible logic configuration. Its operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical maximum input clock frequency is greater than 8 GHz.
The differential output swing can be set to 0, 200, 400, 600, or 800 mV peak-to-peak.
Typical propagation delay is 165 ps.
Yes, it includes internal 50 ohm input termination resistors.
For PECL outputs, the supply voltage is 2.375 V to 3.465 V. For NECL outputs, VCC is 0 V and VEE is -2.375 V to -3.465 V.
-40°C to +85°C.
16-QFN (3x3) surface mount package with exposed pad.
