| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,356 pcs
|
14356 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Frequency | |
| Halogen Free | |
| Input | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| Output Voltage | |
| Propagation Delay | |
| Ratio | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The NB7L1008MNG from On Semiconductor is a differential 1:8 fanout buffer designed for high-speed clock and data distribution applications. It supports data rates exceeding 12 Gb/s and clock frequencies above 7 GHz, making it suitable for SONET, GigE, Fiber Channel, and backplane systems.
This buffer features multi-level inputs that accept LVPECL, CML, and LVDS logic levels, with internal 50 Ohm termination resistors accessible via the VT pin. The outputs are low-skew LVPECL, with a typical peak-to-peak voltage of 750 mV. The device operates over a wide supply voltage range of 2.375 V to 3.6 V and an ambient temperature range of -40°C to +85°C.

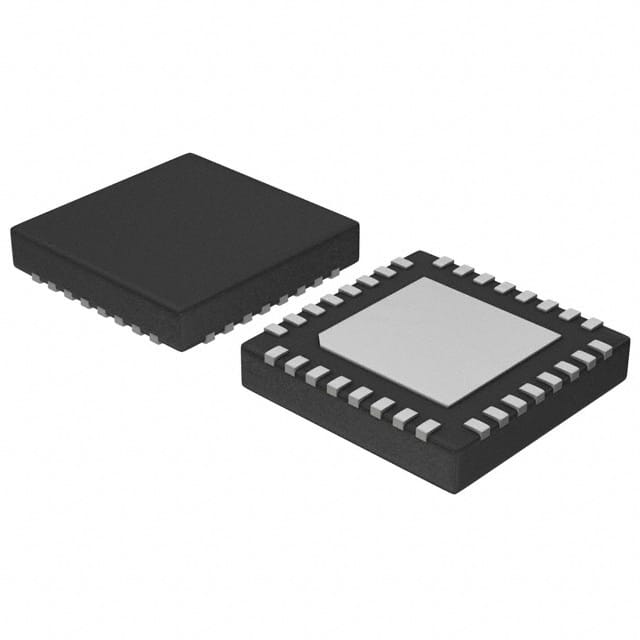

The NB7L1008MNG is housed in a compact 32-QFN (5x5 mm) package, designed for surface mounting. Its optimized design for low output skew and features like the VREFAC reference output for capacitor-coupled inputs enhance its utility in complex clock distribution networks.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.44 | $4.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum input data rate is greater than 12 Gb/s.
The maximum input clock frequency is greater than 7 GHz.
The typical propagation delay is 160 ps.
It is packaged in a 32-QFN (5x5 mm) surface mount package.
Supported input logic levels include LVPECL, CML, and LVDS.
The operating voltage range is from 2.375 V to 3.6 V.
Yes, it is RoHS compliant.
