Mfr Part #:

NB3W800LMNG

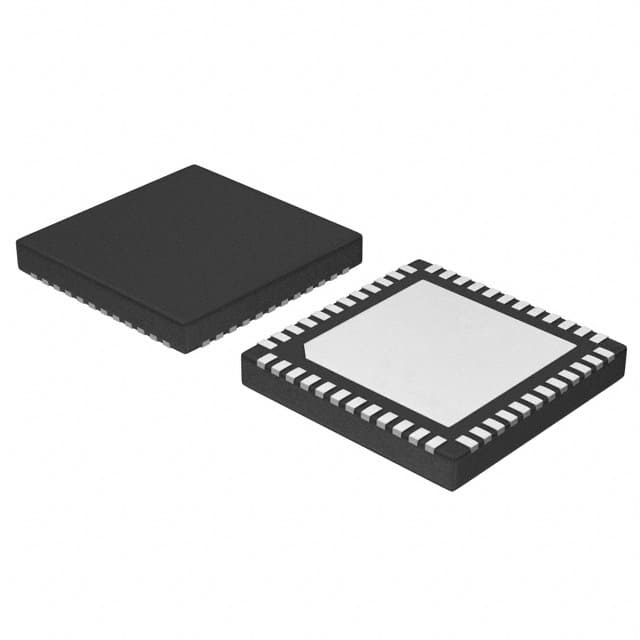

The NB3W800LMNG is an 8-output differential clock buffer from On Semiconductor, designed for PCIe and QPI applications. It operates at 3.3V and offers HCSL compatible outputs.

✓ Total Stock: 35,902 pcs

$ Price Range: $7.01

NB3W800LMNG Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	35,902 pcs On Request	35902 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

NB3W800LMNG Description

Short technical summary and product information.

The NB3W800LMNG is a low-power, 8-output differential clock buffer from On Semiconductor, suitable for distributing reference clocks for applications like PCIe Gen1/Gen2/Gen3/Gen4, SAS, SATA, and Intel QuickPath Interconnect (QPI).

This device meets the DB800ZL specification and features low-power NMOS push-pull HCSL compatible outputs. It operates with a supply voltage range of 3.135V to 3.465V and supports clock frequencies up to 133.33 MHz. Key electrical specifications include cycle-to-cycle jitter of less than 50 ps, output-to-output skew of less than 50 ps, and input-to-output delay variation of less than 100 ps.

The NB3W800LMNG includes a PLL that is configurable for PLL mode or bypass mode for fanout operation, supporting 100 MHz or 133 MHz operation. It also offers selectable PLL bandwidth to minimize jitter peaking. Individual OE (Output Enable) control is available for each output, providing hardware control.

Packaged in a 48-QFN (6x6) surface mount package, the NB3W800LMNG is designed for efficient integration into various electronic systems. It operates within a temperature range of 0°C to 70°C.

NB3W800LMNG Quick Information

Product Type: Clock Generator, PLL, Frequency Synthesizer

Canonical Name: NB3W800LMNG Differential Clock Buffer

Subcategory: Differential Clock Buffer

NB3W800LMNG Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Pb-Free

NB3W800LMNG Estimated Pricing

Qty	Low	High
1+	$7.01	$7.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

NB3W800LMNG Features

8 differential clock output pairs.
Low-power HCSL compatible outputs.
Supports PCIe, QPI, SAS, and SATA.
Configurable PLL mode or bypass mode.
Surface mount 48-QFN package.

NB3W800LMNG Applications

Distributes reference clocks for PCIe.
Suitable for QPI applications.
Used in SAS and SATA systems.
Fanout buffer for clock signals.

NB3W800LMNG FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating voltage for the NB3W800LMNG?

The operating voltage for the NB3W800LMNG is between 3.135V and 3.465V.

What package type is the NB3W800LMNG available in?

The NB3W800LMNG is available in a 48-QFN (6x6) package.

What is the operating temperature range for the NB3W800LMNG?

The operating temperature range for the NB3W800LMNG is 0°C to 70°C.

Is the NB3W800LMNG RoHS compliant?

The NB3W800LMNG is RoHS3 Compliant.

What is the maximum clock frequency supported by the NB3W800LMNG?

The NB3W800LMNG supports a maximum clock frequency of 133.33 MHz.

How many differential clock outputs does the NB3W800LMNG have?

The NB3W800LMNG has 8 differential clock output pairs.

Category	Clock Generators, PLLs, Frequency Synthesizers
Manufacturer Name	On Semiconductor
Differential	Yes
Divider	No/No
Frequency	133.33 MHz
Input	Clock
Input Type	Clock
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature	0°C ~ 70°C
Output	HCSL
Output Voltage	0.7 V
PLL	Yes with Bypass
Ratio	1:8
Supplier Device Package	48-QFN (6x6)
Supplier Package	48-VFQFN Exposed Pad
Tape & Reel	No
Voltage	3.135V ~ 3.465V
