Mfr Part #:

NB3N1900KMNG

The On Semiconductor NB3N1900KMNG is a differential clock buffer designed for distributing reference clocks. It features a 1:19 ratio and HCSL output levels.

✓ Total Stock: 20,328 pcs

$ Price Range: $7.01

NB3N1900KMNG Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	20,328 pcs On Request	20328 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

NB3N1900KMNG Description

Short technical summary and product information.

The NB3N1900KMNG from On Semiconductor is a differential clock buffer capable of distributing reference clocks for various applications, including PCIe and Intel QPI/UPI. It operates with a 1:19 fanout ratio and supports HCSL output levels.

This device features a fixed feedback path for low input-to-output delay, with a variation of less than 50 ps. It offers selectable PLL bandwidth and is compatible with spread spectrum clocking for reduced EMI. The buffer supports 100 MHz and 133 MHz operation, meeting requirements for PCIe Gen2/Gen3/Gen4 and Intel QPI & UPI phase jitter specifications.

Key electrical characteristics include a cycle-to-cycle jitter of less than 50 ps and an output-to-output skew of less than 65 ps. The operating voltage range is 3.135V to 3.465V, with an operating temperature range of -10°C to 70°C.

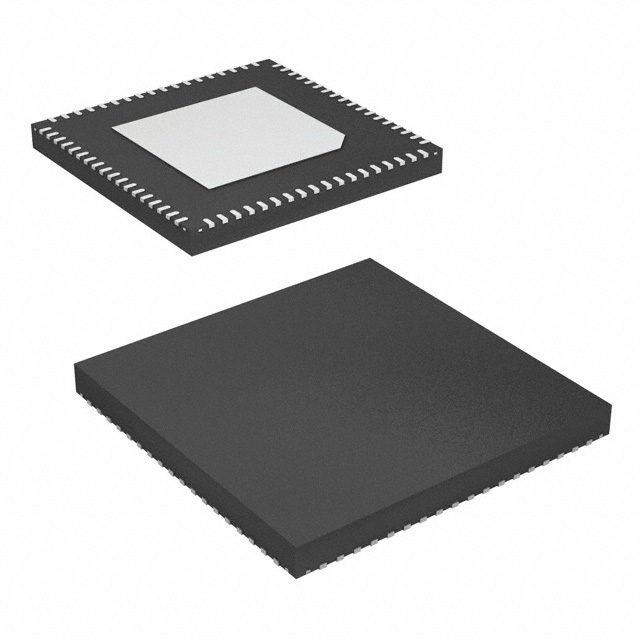

The NB3N1900KMNG is available in a 72-QFN (10x10) package and is designed for surface mounting.

NB3N1900KMNG Quick Information

Product Type: Clock Buffer

Canonical Name: NB3N1900KMNG Differential Clock Buffer

Subcategory: Clock Generators, PLLs, Frequency Synthesizers

NB3N1900KMNG Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Pb-Free

NB3N1900KMNG Estimated Pricing

Qty	Low	High
1+	$7.01	$7.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

NB3N1900KMNG Features

1:19 differential clock buffer.
HCSL output levels.
Low input-to-output delay.
Supports PCIe and Intel QPI/UPI.
72-QFN surface mount package.

NB3N1900KMNG Applications

PCIe clock distribution.
Intel QPI/UPI clock distribution.
High-speed clock buffering.
Low jitter clock generation.

NB3N1900KMNG FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage for the NB3N1900KMNG?

The operating voltage for the NB3N1900KMNG is between 3.135V and 3.465V.

What is the maximum frequency supported by this clock buffer?

The NB3N1900KMNG supports a maximum frequency of 133.33MHz.

What type of output signals does the NB3N1900KMNG provide?

The NB3N1900KMNG provides HCSL output signals.

What is the fanout ratio of the NB3N1900KMNG?

The NB3N1900KMNG has a fanout ratio of 1:19.

What is the operating temperature range for this device?

The operating temperature range for the NB3N1900KMNG is -10°C to 70°C.

What package type is the NB3N1900KMNG supplied in?

The NB3N1900KMNG is supplied in a 72-VFQFN Exposed Pad package.

Does the NB3N1900KMNG feature a PLL?

Yes, the NB3N1900KMNG features a PLL with a bypass option.

Category	Clock Generators, PLLs, Frequency Synthesizers
Manufacturer Name	On Semiconductor
Differential	Yes
Divider	No/No
Frequency	133.33MHz
Input	Clock
Input Type	Clock
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature	-10°C ~ 70°C
Output	HCSL
PLL	Yes with Bypass
Ratio	1:19
Supplier Device Package	72-QFN (10x10)
Supplier Package	72-QFN (10x10)
Tape & Reel	No
Voltage	3.135V ~ 3.465V
