| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,512 pcs
|
4512 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Frequency | |
| Input | |
| Lead Spacing | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| Propagation Delay | |
| Ratio | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The ON Semiconductor NB100LVEP221FARG is a low skew 2:1:20 differential clock driver designed for clock distribution. It accepts two clock sources into an input multiplexer, with inputs supporting ECL, PECL, and HSTL signal levels.
Key electrical specifications include a maximum frequency of 1 GHz, an operating voltage range of 2.375V to 3.8V, and an operating temperature range of -40°C to 85°C. The device exhibits low output-to-output skew (15 ps typical) and device-to-device skew (40 ps typical), with jitter less than 2 ps RMS and a propagation delay of 540 ps typical.

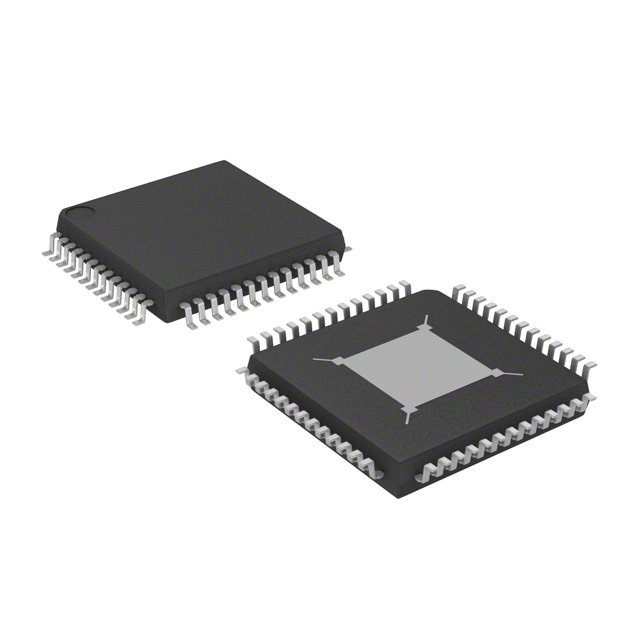

This clock driver is housed in a 52-LQFP (10x10) exposed pad package and is designed for surface mounting. It is suitable for high-performance clock distribution in systems requiring precise timing and low skew.
The NB100LVEP221FARG is pin compatible with the Motorola MC100EP221 and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.44 | $4.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.375 V to 3.8 V.
The operating temperature range is -40°C to 85°C.
It is supplied in a 52-LQFP (10x10) exposed pad package.
The RoHS status is RoHS3 Compliant.
