| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Diameter | |
| Dimensions | |
| Failure Rate | |
| Height | |
| Mounting Type | |
| Tolerance | |
| Voltage |

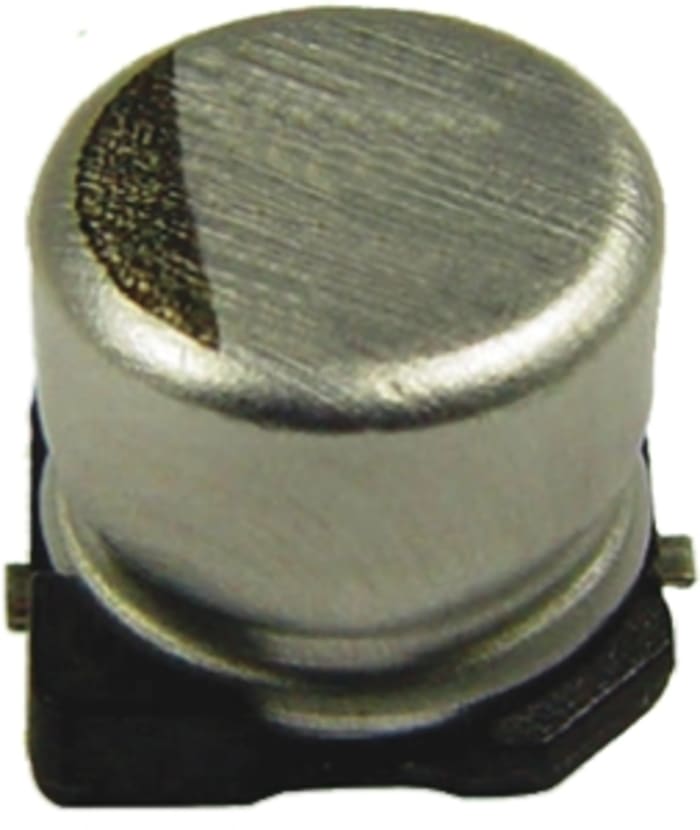

The NIC Components NAZT471M16V8X10.5NBF is a polar Aluminium Electrolytic Capacitor from the NAZT series. It offers a capacitance of 470µF with a voltage rating of 16V dc and a tolerance of ±20%.
This capacitor is designed for surface mount applications and has dimensions of 8mm in diameter and 10.5mm in height. It operates within a temperature range of -55°C to +105°C and has a typical lifetime of 5000 hours. Key electrical characteristics include a ripple current of 450mA, a leakage current of 75.2 μA, and an equivalent series resistance of 170mΩ.
The NAZT series capacitors are suitable for various electronic circuits requiring stable capacitance and filtering capabilities. Their surface mount design facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 470µF.
The voltage rating is 16V dc.
The operating temperature range is from -55°C to +105°C.
The tolerance is ±20%.
The ripple current is 450mA.
The leakage current is 75.2 μA.
The equivalent series resistance is 170mΩ.
