| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,773 pcs
|
1773 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Diameter | |
| Head Style | |
| Mounting Type | |
| SVHC Present | |
| Thread Length | |
| Thread Size |

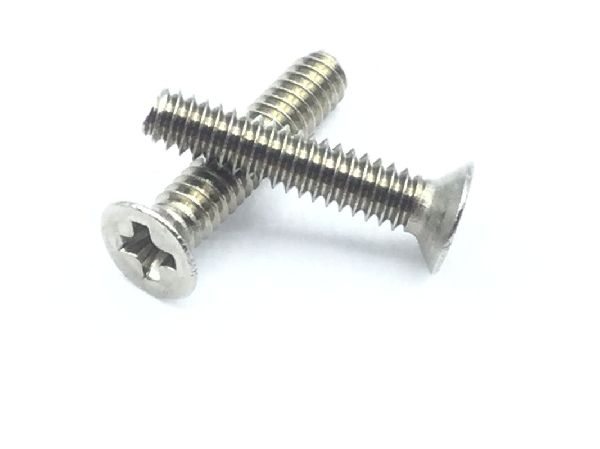

The NAS662C2R7 is a machine screw from QPL, designed for various fastening applications. This screw has a nominal length of 0.438 inches and a thread size of 2-56, with a thread length also specified between 0.402 and 0.438 inches. It features a flat countersunk head style with a countersink angle between 99.0 and 101.0 degrees, and an internal drive style of cross recess type 1.
The screw is constructed from steel, specifically comp 302, 303, 321, or 347, and is passivated with a Qq-p-35 federal specification single treatment response. It has a minimum tensile strength of 80,000 psi and a thread diameter of 0.086 inches. The thread class is 2a with a right-hand thread direction and 56 threads per inch (TPI).
This component is packaged in standard quantities of 100 units. It is RoHS3 compliant, has a Moisture Sensitivity Level (MSL) of 1, and is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is 2-56 UNC coarse with 56 threads per inch.
The screw is made from steel composition 302, 303, 321, or 347.
The screw is passivated per QQ-P-35 federal specification.
The minimum tensile strength is 80000 psi.
It has a flat countersunk head and cross recess type 1 drive.
The fastener length is 0.438 inches.
The thread class is 2A and direction is right-hand.
