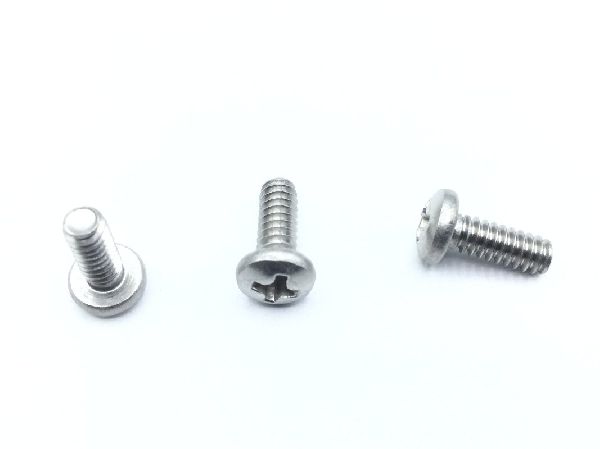

The NAS1635-06-6 is a specialized screw manufactured by NEF, designed for robust applications requiring corrosion resistance. Constructed from steel with a passivate surface treatment, it meets the Qq-p-35 Fed Spec single treatment response standard. This screw features a nominal thread diameter of 0.138 inches and 32 threads per inch, conforming to the UNC thread series designator.
Key mechanical specifications include a fastener length ranging from 0.345 to 0.375 inches and a thread length between 0.283 and 0.375 inches. The head style is pan, with a head diameter between 0.256 and 0.270 inches and a head height of 0.087 to 0.097 inches. The internal drive style is a Type 1 cross recess. The thread class is 2a with a right-hand thread direction.
This component is suitable for various industrial and potentially military applications due to its material and finish. The minimum order quantity is 100 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread class is 2a.
The thread direction is right-hand.
The head style is pan.
The screw is made of steel corrosion resisting material.
The surface treatment is passivate.
The nominal thread diameter is 0.138 inches.
It has 32 threads per inch.
