| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Diameter | |
| Head Height | |
| Head Style | |
| Material | |
| Mounting Type | |
| Thread Length |

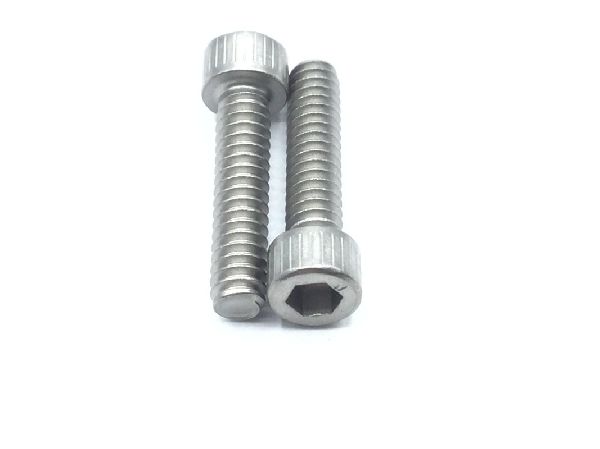

This NAS1352N04-8 socket head cap screw from B&B Smartworx is designed for robust applications. It features a 4-40 thread size with 40 threads per inch and a right-hand thread direction. The screw has a nominal length of 0.50 inches, with actual fastener length ranging between 0.470 and 0.500 inches.
The material is specified as Iron alloy 660, known for its strength and durability. The surface treatment is passivate, providing corrosion resistance. The internal drive style is hexagon, and the head style is a flat chamfer. Key dimensions include a thread diameter of 0.112 inches, a head diameter between 0.176 and 0.183 inches, and a head height between 0.108 and 0.112 inches. The thread class is 3A, and the thread series designator is UNRC.
This component adheres to the 80205-NAS1352 standard, indicating its suitability for professional and industrial applications. It has a minimum tensile strength of 160,000 psi. The screw is packaged in increments of 25 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NAS1352N04-8 screw has a thread size of 4-40 with 40 threads per inch.
The NAS1352N04-8 screw has a nominal length of 0.50 inches, with an actual fastener length between 0.470 and 0.500 inches.
The NAS1352N04-8 screw is made from Iron alloy 660.
The minimum tensile strength of the NAS1352N04-8 screw is 160,000 psi.
The NAS1352N04-8 screw features a hexagon internal drive style.
