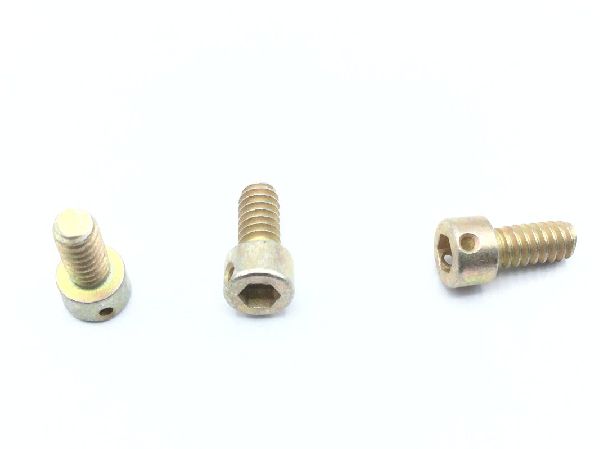

This Honeywell NAS1352-04H4P is a socket head cap screw designed for various mechanical applications. It features a fastener length between 0.220 and 0.250 inches, with a nominal thread diameter of 0.112 inches and a thread size of 4-40.
The screw is made from steel and has a cadmium and chromate surface treatment, conforming to QQ-P-416, Type 2, Class 2 Fed Spec. It has a flat chamfer head style and a hexagon internal drive style. The minimum tensile strength is 180,000 psi, and the minimum yield strength is 155,000 psi, with a hardness rating between 38.0 and 45.0 Rockwell C.
Additional specifications include a thread class of 3A, right-hand thread direction, and 40 threads per inch. It has two drilled holes, each with a diameter of 0.036 inches, configured in a round longitudinal style. The head diameter ranges from 0.176 to 0.183 inches, and the head height is between 0.108 and 0.112 inches. The width across flats is between 0.094 and 0.095 inches.
This part adheres to the NAS1352 standard. It is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fastener length is between 0.220 and 0.250 inches.
The thread size is 4-40, with 40 threads per inch.
The screw is made of steel.
The surface treatment is Cadmium and Chromate, conforming to QQ-P-416, Type 2, Class 2 Fed Spec.
The minimum tensile strength is 180,000 psi.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
