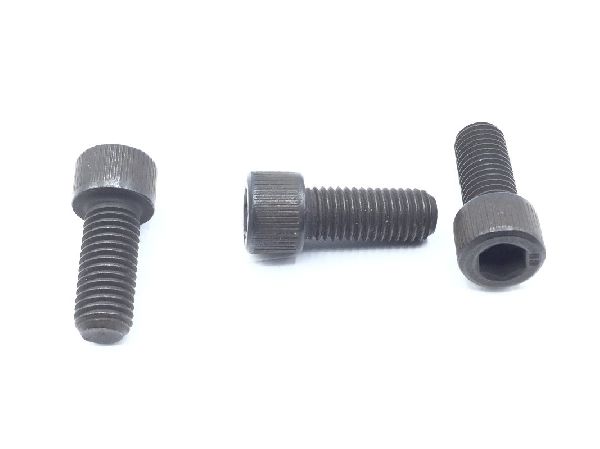

NAS1351-4-10 The NAS1351-4-10 is a socket head cap screw manufactured by B&B Smartworx. It features a 1/4-28 UNF thread and a length of 0.625 inches.
Mfr Part #:

NAS1351-4-10

Available from 1 distributors
Mfr Name: B&B Smartworx
B&B Smartworx
The NAS1351-4-10 is a socket head cap screw manufactured by B&B Smartworx. It features a 1/4-28 UNF thread and a length of 0.625 inches.
✓ Total Stock: 53 pcs
$ Price Range: $0.52

NAS1351-4-10 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
53 pcs
On Request
53 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NAS1351-4-10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Head Style
Material
Thread Length
View Similar Products (0)

NAS1351-4-10 Description

Short technical summary and product information.

The NAS1351-4-10 is a socket head cap screw from B&B Smartworx, designed for robust fastening applications. This screw features a 1/4-28 UNF thread series with a right-hand thread direction and a thread class of 3A. The nominal thread diameter is 0.250 inches, and the thread length is a minimum of 0.625 inches.



Constructed from steel with a black oxide finish, this fastener has a minimum tensile strength of 160,000 psi and a minimum yield strength of 130,000 psi. Its hardness rating ranges from 36.0 to 45.0 Rockwell C. The head style is a flat chamfer, with a head diameter between 0.365 and 0.375 inches and a head height between 0.244 and 0.250 inches. The internal drive style is hexagon, with a width across flats between 0.188 and 0.190 inches.



This NAS1351 series screw is supplied in a standard package quantity of 50 units. It adheres to the NAS1351 specification standard.

NAS1351-4-10 Quick Information

Product Type: Socket Head Cap Screw
Series: NAS1351
Canonical Name: NAS1351-4-10 Socket Head Cap Screw
Subcategory: Socket Head Cap Screw

NAS1351-4-10 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NAS1351-4-10 Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

NAS1351-4-10 Features

  • Steel socket head cap screw with black oxide finish.
  • 1/4-28 UNF thread, right-hand direction, class 3A.
  • 0.625 inch minimum thread length.
  • High tensile strength of 160,000 psi.
  • Hexagon internal drive style.

NAS1351-4-10 Applications

  • Used in general mechanical assemblies.
  • Suitable for applications requiring high strength.
  • Ideal for tight tolerance fastening needs.
  • Compliant with NAS1351 standards.

NAS1351-4-10 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the thread series designator of the NAS1351-4-10?

The thread series designator is UNF.

What is the thread class of the NAS1351-4-10?

The thread class is 3A.

What is the thread quantity per inch for this part?

It has 28 threads per inch.

What is the material used for the NAS1351-4-10?

The material is steel.

What is the head style of this terminal strip?

The head style is flat chamfer.

What standard does this part comply with?

It complies with NAS1351 standards.

What is the packaging quantity for this product?

It is packaged in quantities of 50 units.
