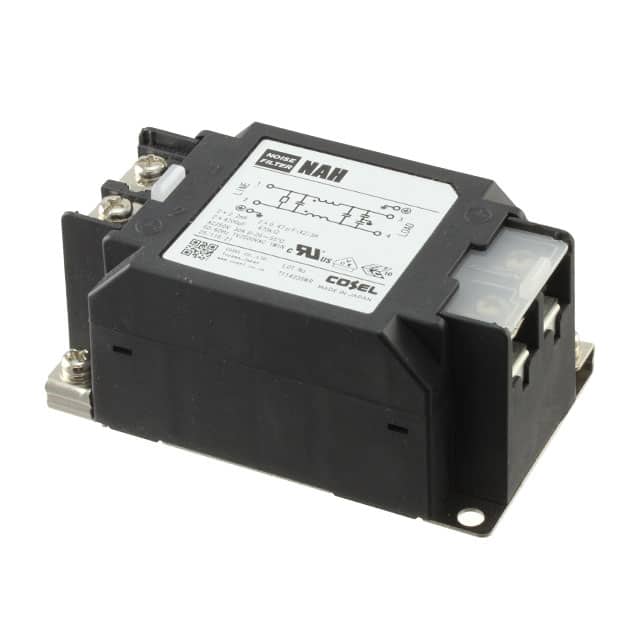

NAH-20-472 The Cosel NAH-20-472 is a single-stage, single-phase power line filter module designed for general purpose applications. It features a 20A current rating and a 250V voltage rating.
Mfr Part #:

NAH-20-472

Available from 1 distributors
Mfr Name: Cosel
Cosel
The Cosel NAH-20-472 is a single-stage, single-phase power line filter module designed for general purpose applications. It features a 20A current rating and a 250V voltage rating.
✓ Total Stock: 1 pcs
$ Price Range: $0.99

NAH-20-472 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NAH-20-472 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Configuration
Current
Filter Type
Mounting Type
Operating Temperature
Termination Style
Voltage
View Similar Products (0)

NAH-20-472 Description

Short technical summary and product information.

The Cosel NAH-20-472 is a high-performance single-stage power line filter module designed for single-phase input. Rated for 250V AC/DC and 20A, this filter is suitable for general purpose applications.



This filter module utilizes a chassis mount design with terminal block termination for easy integration into various systems. It operates within a wide temperature range of -40°C to +85°C and has an operating humidity range of 20 to 95% RH (non-condensing).



The NAH series, including the NAH-20-472, is known for its ultra-high attenuation characteristics, particularly from 9kHz to 1MHz, making it effective in reducing electromagnetic interference. Safety agency approvals include cURus and VDE, ensuring compliance with industry standards.

NAH-20-472 Quick Information

Product Type: Power Line Filter Module
Series: NAH
Canonical Name: Cosel NAH-20-472 Single Phase Power Line Filter
Subcategory: Single Stage

NAH-20-472 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NAH-20-472 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NAH-20-472 Features

  • Single-stage, single-phase power line filter.
  • Rated for 20A current and 250V voltage.
  • Chassis mount with terminal block termination.
  • Wide operating temperature range of -40°C to +85°C.
  • Ultra-high attenuation characteristics.

NAH-20-472 Applications

  • Ideal for general purpose filtering needs.
  • Suitable for single-phase power systems.
  • Effective in reducing EMI noise.
  • Used in industrial equipment applications.
  • Designed for robust system integration.

NAH-20-472 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the rated current for the Cosel NAH-20-472?

The rated current for the Cosel NAH-20-472 is 20A.

What is the operating voltage of the NAH-20-472 power line filter?

The operating voltage for the NAH-20-472 is 250V.

What is the operating temperature range for the NAH-20-472?

The operating temperature range for the NAH-20-472 is -40°C to +85°C.

How is the Cosel NAH-20-472 mounted?

The Cosel NAH-20-472 is designed for chassis mounting.

What type of termination does the NAH-20-472 use?

The NAH-20-472 uses terminal block termination.

What are the safety agency approvals for the NAH-20-472?

The NAH-20-472 has cURus and VDE safety agency approvals.
