| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
768 pcs
|
768 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Construction | |
| Diameter | |
| Dissipation Factor | |
| Failure Rate | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tape & Reel | |
| Tolerance | |
| Voltage |

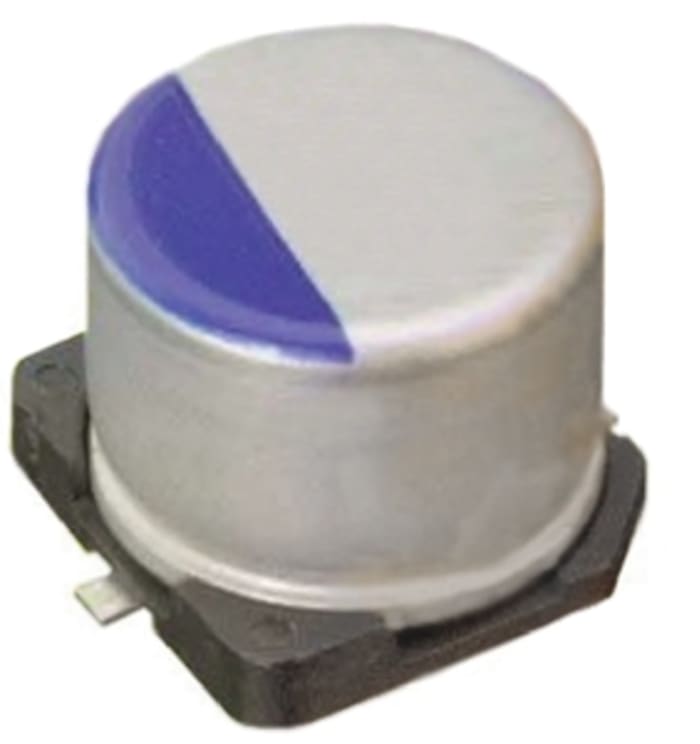

The NIC Components NACE100M35V5X5.5TR.13 is a general-purpose Aluminium Capacitor from the NACE series. It features a capacitance of 10 μF and a maximum voltage rating of 35V dc, with a tolerance of ±20%.
This capacitor is constructed with a cylindrical can and is designed for surface mounting, making it suitable for automatic mounting and reflow soldering processes. It has a compact size with dimensions of 5.5mm in height and length, and 5mm in diameter.
Operating within a temperature range of -40°C to 85°C, it offers a typical lifetime of 2000 hours. Key electrical characteristics include a ripple current of 30mA, leakage current of 3.5μA, and an ESR of 19.9Ω. The NACE series is also resistant to solvents for up to 2 minutes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 10 μF.
The maximum voltage rating is 35 V DC.
The tolerance is ±20%.
The typical ripple current is 30 mA.
The typical ESR is 19.9 Ω.
The rated lifetime is 2000 hours at 85°C.
The operating temperature range is -40°C to 85°C.
