Mfr Part #:

N7E50-7516PK-20

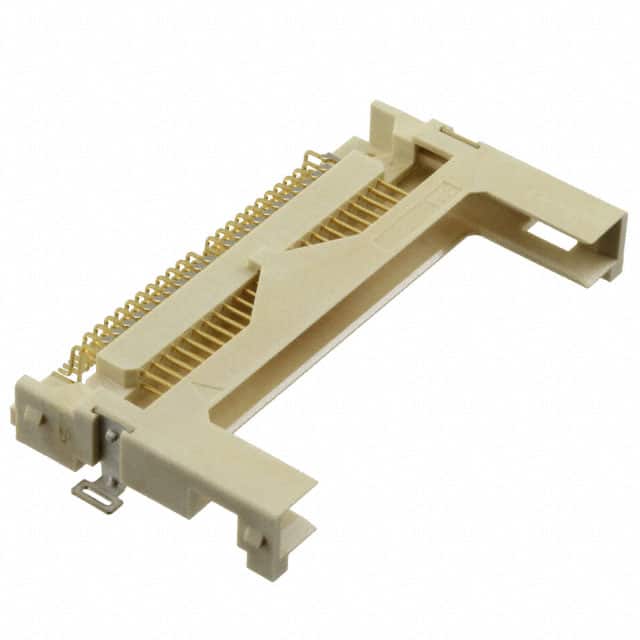

3M N7E50-7516PK-20 is a 50-position CompactFlash Type I card connector with surface mount right angle termination, featuring gold flash over 80/20 palladium nickel lubricated contacts.

✓ Total Stock: 57 pcs

$ Price Range: $8.27 - $13.25

N7E50-7516PK-20 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	55 pcs On Request	55 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

N7E50-7516PK-20 Description

Short technical summary and product information.

The 3M N7E50-7516PK-20 is a 50-position CompactFlash Type I card header from the 7E50 series. It features a right-angle surface mount design with a height above board of 6.64 mm and single row solder tails on 0.635 mm pitch. The connector accepts CompactFlash Type I cards using a push-in, pull-out insertion method.

Electrical specifications include a current rating of 0.5 A per contact, minimum insulation resistance of 1 GΩ at 500 VDC, and a withstanding voltage of 500 VRMS at sea level. The contacts are copper alloy with a gold flash over 80/20 palladium nickel lubricated finish at the wiping area, ensuring reliable signal integrity.

The connector is rated for operation from -55°C to +85°C and has a process rating of 260°C per J-STD-020C, supporting lead-free soldering. The housing is beige liquid crystal polymer (LCP) with UL 94V-0 flammability rating. Built-in board and card guides aid alignment during assembly.

N7E50-7516PK-20 Quick Information

Product Type: CompactFlash Card Connector

Series: 7E50

Canonical Name: 3M 7E50 Series CompactFlash Type I Card Connector, 50 Positions, Surface Mount Right Angle

Subcategory: CompactFlash Socket

N7E50-7516PK-20 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

N7E50-7516PK-20 Estimated Pricing

Qty	Low	High
1+	$13.25	$13.25
10+	$11.26	$11.26
20+	$10.56	$10.56
50+	$10.05	$10.05
100+	$9.56	$9.56
200+	$8.84	$8.84
500+	$8.69	$8.69
1,000+	$8.27	$8.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

N7E50-7516PK-20 Features

50-position CompactFlash Type I connector.
Surface mount right angle mounting.
Gold flash over PdNi lubricated contacts.
Rated for 0.5 A per contact.
Operating temperature -55°C to +85°C.

N7E50-7516PK-20 Applications

CompactFlash Type I memory card interface.
Industrial embedded systems and data loggers.
Push-in, pull-out card insertion design.
Board and card guides for alignment.

N7E50-7516PK-20 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this connector have?

50 positions.

What is the current rating per contact?

0.5 A.

What is the mounting type?

Surface Mount, Right Angle.

What is the operating temperature range?

-55°C to +85°C.

What contact finish is used?

Gold flash over 80/20 Palladium Nickel, lubricated.

What is the insulation resistance?

Minimum 1 GΩ at 500 VDC.

What is the process rating for soldering?

260°C per J-STD-020C.

Category	PC Card Sockets
Manufacturer Name	3M Electronic Solutions
Card Type	CompactFlash® - Type I
Color	Beige
Connector Type	Connector
Contact Finish	Gold flash over 80/20 Palladium Nickel, Lubricated
Contact Finish Thickness	0.5 µm
Contact Material	Copper Alloy
Current Rating	0.5 A
Features	Board Guide, Card Guide
Height Above Board	6.64 mm
Industrial Grade	Yes
Insertion, Removal Method	Push In, Pull Out
Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Resistance	>1 × 10⁹ Ω
Lead Spacing	0.635 mm
Lead Style	Smd
Mounting Feature	Normal, Standard - Top
Mounting Type	Surface Mount, Right Angle
Number of Positions	50
Storage Temperature	-55°C ~ 85°C
Temperature Rating	-55°C to +85°C
Withstanding Voltage	500 VRMS
