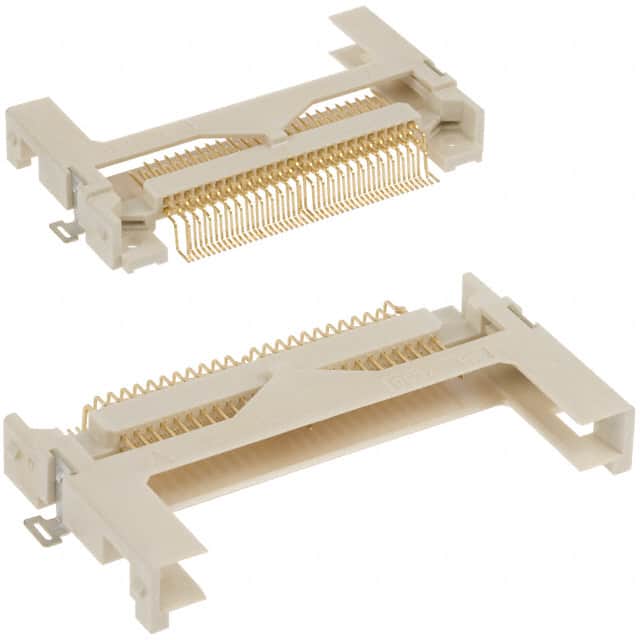

N7E50-7516PG-20 The 3M N7E50-7516PG-20 is a CompactFlash Type I card connector with 50 positions, featuring a right-angle surface mount design. It supports push-in, pull-out insertion and has gold contacts.
Mfr Part #:

N7E50-7516PG-20

Available from 3 distributors
Mfr Name: 3M Electronic Solutions
3M Electronic Solutions
The 3M N7E50-7516PG-20 is a CompactFlash Type I card connector with 50 positions, featuring a right-angle surface mount design. It supports push-in, pull-out insertion and has gold contacts.
✓ Total Stock: 83 pcs
$ Price Range: $8.27 - $12.35

N7E50-7516PG-20 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Innova Technologies ✓
Non-Authorised Inventory information
74 pcs
On Request
74 pcs On Request 1 On Request On Request 1404 On Request On Request
Partservice ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

N7E50-7516PG-20 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Features
Height Above Board
Insertion, Removal Method
Insulation Material
Insulation Resistance
Lead Spacing
Mounting Feature
Mounting Type
Number of Positions
Operating Temperature Range
Tape Width
Withstanding Voltage
View Similar Products (0)

N7E50-7516PG-20 Description

Short technical summary and product information.

This 50-position CompactFlash Type I card connector from 3M's 7E50 Series is designed for surface mount, right angle mounting. It includes board and card guides for secure mating.



Electrical specifications include a current rating of 0.5 A per contact, insulation resistance greater than 1×10⁹ Ω at 500 VDC, and withstanding voltage of 500 Vrms at sea level. The contact wiping area is plated with gold flash over 80/20 palladium nickel, and solder tails have gold flash.



The connector housing is made of liquid crystal polymer (LCP) with a UL 94V-0 flammability rating. It operates over a temperature range of -55°C to +85°C and can withstand a process temperature of 260°C per J-STD-020C. Packaging is tape and reel with 72 mm tape width.



This connector is suitable for applications requiring reliable connection to CompactFlash Type I cards, such as industrial computing, embedded systems, and data storage devices.

N7E50-7516PG-20 Quick Information

Product Type: CompactFlash Card Connector
Series: 7E50
Canonical Name: 3M N7E50-7516PG-20 CompactFlash Type I Card Connector, Right Angle SMD
Subcategory: CompactFlash Card Connector

N7E50-7516PG-20 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

N7E50-7516PG-20 Estimated Pricing

Qty Low High
1+ $12.35 $12.35
10+ $11.46 $11.46
20+ $10.65 $10.65
50+ $10.23 $10.23
100+ $9.74 $9.74
200+ $9.73 $9.73
500+ $8.69 $8.69
1,000+ $8.27 $8.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

N7E50-7516PG-20 Features

  • 50-position CompactFlash Type I card connector.
  • Right-angle surface mount configuration.
  • Gold flash over palladium nickel contacts.
  • Rated for 0.5 A per contact.
  • Operates from -55°C to +85°C.

N7E50-7516PG-20 Applications

  • Used in industrial embedded systems.
  • Ideal for portable data storage devices.
  • Suitable for CompactFlash Type I interfaces.

N7E50-7516PG-20 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the N7E50-7516PG-20 connector have?

50 positions.

What is the current rating of this connector?

0.5 A per contact.

What is the voltage rating?

500 Vrms at sea level.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-55°C to +85°C.

What is the contact finish?

Gold flash over 80/20 palladium nickel on wiping area, gold flash on solder tails.

What is the insulation material?
