| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,929 pcs
|
8929 pcs | On Request | 1 | On Request | On Request | 07+ | On Request | On Request | |
|
1,590 pcs
|
1590 pcs | On Request | 1 | On Request | On Request | 07+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Failure Rate | |
| Industrial Grade | |
| Logic Type | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage Supply |
The NXP Semiconductors N74F540D is an inverting buffer designed for logic applications. It features an 8-bit per element configuration and a 3-state output, allowing for flexible signal control.
This buffer operates with a supply voltage ranging from 4.5V to 5.5V, making it suitable for various digital systems. The output current capabilities are 15mA for high and 64mA for low states. The device is specified for an operating temperature range of 0°C to 70°C.

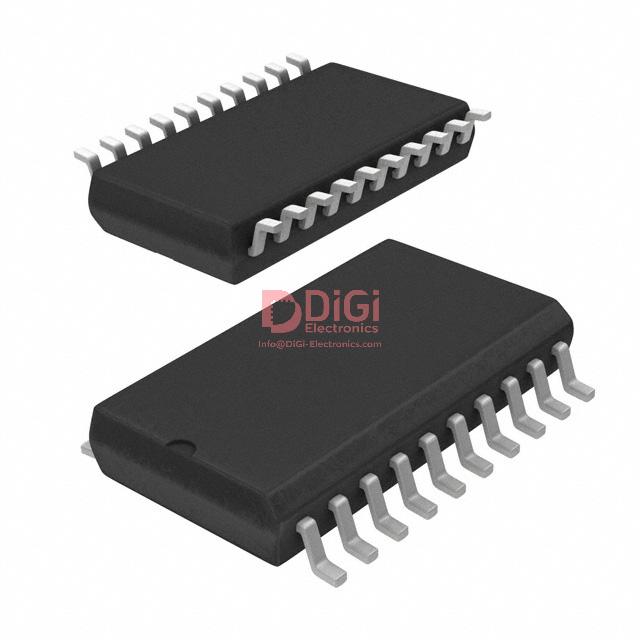

Packaged in a 20-SOIC surface mount configuration, the N74F540D is designed for ease of integration into printed circuit boards. Its base product number is 74F540, and it belongs to the 74F series. The product status is listed as Obsolete.
Environmental compliance includes RoHS3 compliance, MSL 1 (Unlimited) moisture sensitivity, and REACH unaffected status. However, these compliance details are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.21 | $2.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The N74F540D operates with a supply voltage range of 4.5V to 5.5V.
The N74F540D features a 3-state output.
The operating temperature range for the N74F540D is 0°C to 70°C.
The N74F540D is available in a 20-SOIC (0.295", 7.50mm Width) surface mount package.
