N3793-6302RB The N3793-6302RB is a 10-position, 2-row shrouded header from 3M with a 2.54mm pitch. It features through hole mounting, solder termination, and tin-plated square pins.
Mfr Part #:

N3793-6302RB

Available from 4 distributors
Mfr Name: 3M Electronic Solutions
3M Electronic Solutions
The N3793-6302RB is a 10-position, 2-row shrouded header from 3M with a 2.54mm pitch. It features through hole mounting, solder termination, and tin-plated square pins.
✓ Total Stock: 29,549 pcs
$ Price Range: $1.33 - $2.46

N3793-6302RB Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
29,100 pcs
On Request
29100 pcs On Request 1 10 On Request 2016 On Request On Request
Fe Components ✓
Non-Authorised Inventory information
302 pcs
On Request
302 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
137 pcs
On Request
137 pcs On Request 1 On Request On Request 19+ On Request On Request
Partservice ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

N3793-6302RB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

N3793-6302RB Description

Short technical summary and product information.

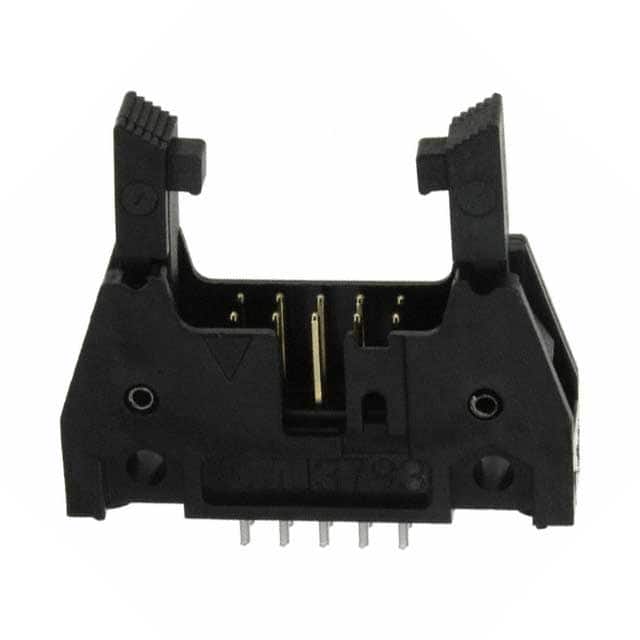

The N3793-6302RB is a 10-position, 2-row male pin header from 3M, part of the shrouded header family with a full 4-wall shroud. It has a pitch of 2.54mm (0.100") and row spacing of 2.54mm. The connector is designed for through hole mounting with solder termination, making it suitable for permanent board attachment.



The header features a latch lock/eject hook fastening system for secure mating, and includes a keying slot and mounting flange for alignment and stability. Contacts are made of copper alloy with a tin finish (30.0µin thickness). The insulator is black polycyclohexylenedimethylene terephthalate (PCT) with glass fill, rated UL94 V-0 for flammability.



Electrical rating is 1.75A per contact, with an operating temperature range of -55°C to 105°C. The overall contact length is 0.652" (16.56mm), with a mating pin length of 0.240" (6.10mm). This connector is intended for board-to-board or cable-to-board applications where a robust, polarized connection is required.

N3793-6302RB Quick Information

Product Type: Header, Male Pins
Series: N3793
Canonical Name: Header, Male Pins, 10 Position, 2.54mm Pitch, Through Hole, Shrouded, 3M
Subcategory: Shrouded Header

N3793-6302RB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

N3793-6302RB Estimated Pricing

Qty Low High
1+ $2.46 $2.46
10+ $2.09 $2.09
250+ $1.60 $1.60
450+ $1.51 $1.51
900+ $1.47 $1.47
5,400+ $1.33 $1.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

N3793-6302RB Features

  • 10 positions with 2 rows on 2.54mm pitch.
  • Shrouded header with 4-wall design.
  • Through hole mounting with solder termination.
  • Rated for 1.75A continuous current.
  • Operating temperature range -55°C to 105°C.

N3793-6302RB Applications

  • Ideal for board-to-board connections.
  • Used in cable-to-board interfaces.
  • Suitable for industrial control systems.
  • Common in computer and peripheral wiring.

N3793-6302RB FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the N3793-6302RB have?

10 positions, arranged in 2 rows.

What is the pitch of this header?

2.54mm (0.100")

What is the current rating?

1.75A per contact.

What mounting type does it use?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 105°C.

Is the connector shrouded?

Yes, it has a shrouded 4-wall design with latch lock/eject hooks.

What is the contact finish?

Tin, 30.0µin (0.76µm) thickness.
