| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,350 pcs
|
1350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Pitch (Lead Spacing) | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination |

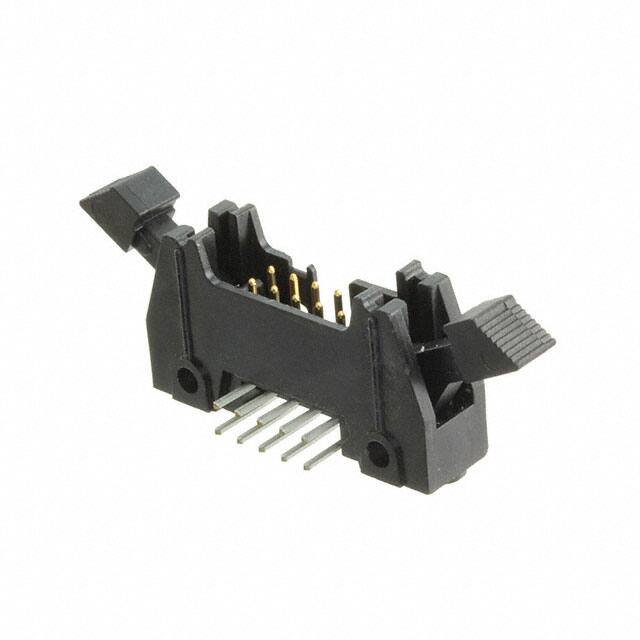

The 3M N3793-5202RB is a 10-position, 2-row shrouded header designed for board-to-board or cable connections. It features a 2.54mm pitch and 0.100" row spacing. The connector is configured with a right-angle through-hole mounting style and solder termination. The housing is shrouded with four walls and includes keying slots and mounting flanges for secure alignment. Short latch lock/eject hooks provide positive fastening. The insulator is made of black PCT (polycyclohexylenedimethylene terephthalate), polyester, glass-filled material with a UL94 V-0 flammability rating. Contacts are made of copper alloy with a tin finish of 30.0µin thickness. The contact length is 6.10mm and the insulation height is 8.64mm. This connector is rated for an operating temperature range of -55°C to 105°C and a current rating of 1.75A per contact. The square contact shape ensures reliable mating. This header is suitable for applications requiring a durable, polarized interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.42 | $2.42 |
| 10+ | $2.09 | $2.09 |
| 100+ | $1.96 | $1.96 |
| 250+ | $1.60 | $1.60 |
| 450+ | $1.51 | $1.51 |
| 900+ | $1.47 | $1.47 |
| 2,700+ | $1.43 | $1.43 |
| 5,400+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with 0.100" row spacing.
The current rating is 1.75A per contact.
Through Hole, Right Angle with solder termination.
-55°C to 105°C.
Tin finish with 30.0µin (0.76µm) thickness over copper alloy.
Black PCT (polycyclohexylenedimethylene terephthalate), polyester, glass-filled with UL94 V-0 rating.
