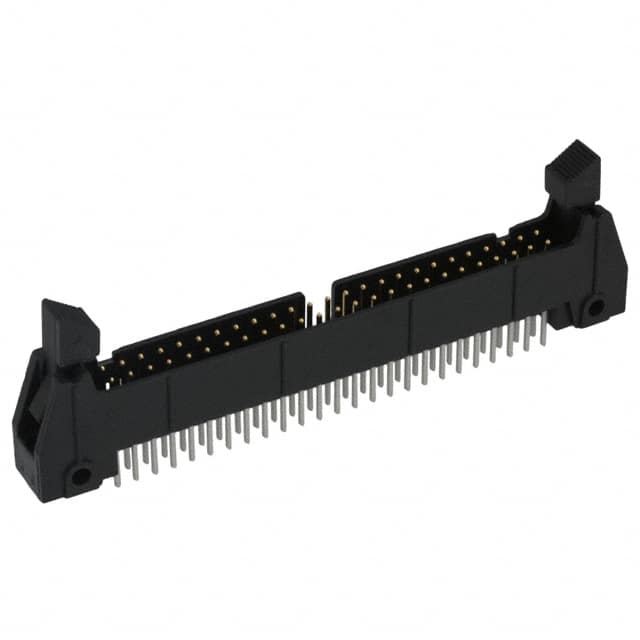

N3433-6202RB The N3433-6202RB is a 50-position, 2-row header from 3M with a 2.54mm pitch, through hole mounting, and shrouded design with latch lock.
Mfr Part #:

N3433-6202RB

Available from 1 distributors
Mfr Name: 3M Electronic Solutions
3M Electronic Solutions
The N3433-6202RB is a 50-position, 2-row header from 3M with a 2.54mm pitch, through hole mounting, and shrouded design with latch lock.
✓ Total Stock: 96 pcs
$ Price Range: $4.64 - $7.67

N3433-6202RB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
96 pcs
On Request
96 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

N3433-6202RB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

N3433-6202RB Description

Short technical summary and product information.

The N3433-6202RB is a high-density header connector from 3M, featuring 50 male pin contacts arranged in two rows with a 2.54mm pitch. This through hole component is designed for board-to-board or cable applications, offering a reliable solder termination for permanent connections. The header is fully shrouded with four walls and includes latch lock/eject hooks for secure mating, along with a keying slot and mounting flange for accurate alignment. The contacts are made of copper alloy with a tin finish (0.76µm thickness) and the insulator is black glass-filled PCT/polyester with a UL94 V-0 flammability rating. Rated at 1.75A per contact, the header operates over a temperature range of -55°C to 105°C. The overall contact length is 16.56mm with a mating contact length of 6.10mm, and the insulation height is 17.27mm.

N3433-6202RB Quick Information

Product Type: Header Connector
Canonical Name: 3M N3433-6202RB 50 Position 2.54mm Pitch Through Hole Header, Male Pins
Subcategory: Male Pins

N3433-6202RB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

N3433-6202RB Estimated Pricing

Qty Low High
1+ $7.67 $7.67
10+ $6.52 $6.52
50+ $6.25 $6.25
100+ $5.39 $5.39
300+ $5.34 $5.34
600+ $4.88 $4.88
1,050+ $4.69 $4.69
2,550+ $4.64 $4.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

N3433-6202RB Features

  • 50 positions with 2.54mm pitch in two rows.
  • Through hole mounting with solder termination.
  • Shrouded design with latch lock/eject hooks.
  • Rated for 1.75A current per contact.
  • Operating temperature range -55°C to 105°C.

N3433-6202RB Applications

  • Ideal for board-to-board interconnections.
  • Suitable for cable-to-board connections.
  • Used in industrial control systems.
  • Applicable for data communication equipment.
  • Designed for secure mating in high-vibration environments.

N3433-6202RB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

50 positions.

What is the pitch?

2.54mm (0.100 inches).

What is the current rating?

1.75A.

What is the mounting type?

Through hole.

How many rows does the header have?

2 rows.

What is the operating temperature range?

-55°C to 105°C.

What is the contact finish?

Tin.
