| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

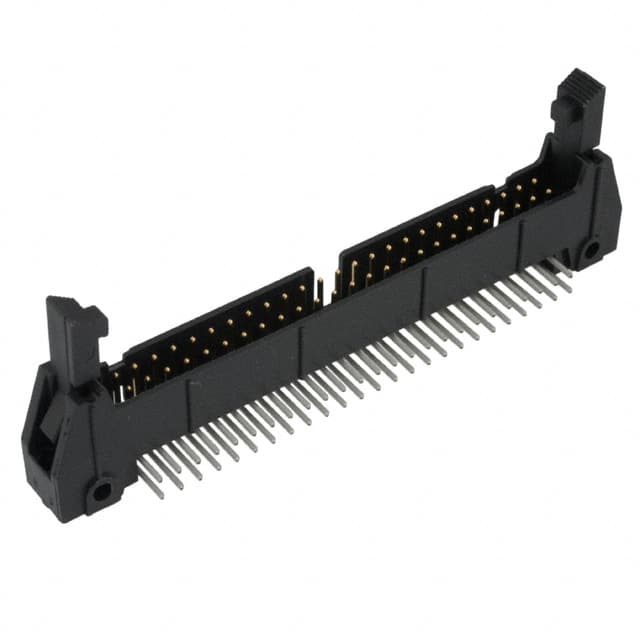

The N3433-5302RB is a 50-position, 2-row, 2.54mm pitch rectangular header from 3M. This male pin connector features a shrouded 4-wall design with long latch lock/eject hooks for secure mating. The contacts are made of copper alloy with a tin finish of 30µin thickness. The insulation is black PCT/glass-filled polyester with UL94 V-0 flammability rating. Mounting is through-hole, right angle, with solder termination. The operating temperature range is -55°C to 105°C, and the current rating is 1.75A per contact. Features include keying slot and mounting flange for alignment and secure attachment. Suitable for board-to-board or cable applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.02 | $8.02 |
| 10+ | $6.82 | $6.82 |
| 25+ | $6.52 | $6.52 |
| 100+ | $5.63 | $5.63 |
| 300+ | $5.56 | $5.56 |
| 600+ | $5.54 | $5.54 |
| 1,050+ | $4.77 | $4.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
2.54mm (0.100").
1.75A per contact.
Through hole, right angle.
-55°C to 105°C.
Tin finish with 30µin (0.76µm) thickness.
PCT, glass-filled polyester with UL94 V-0 rating.
