| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
83 pcs
|
83 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
66 pcs
|
66 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

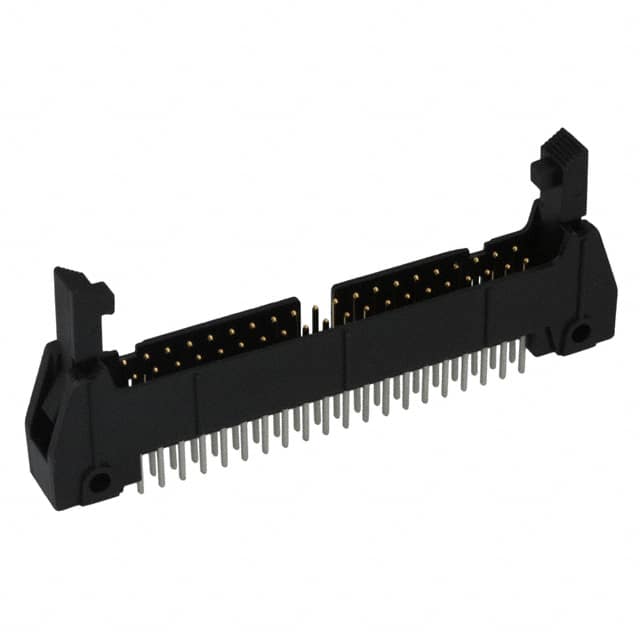

The 3M N3432-6302RB is a 40-position, 2-row rectangular header with male pins arranged at a 2.54mm pitch. It features a shrouded 4-wall design with long latch lock/eject hooks for secure mating. The insulator is made of glass-filled PCT material, colored black, with a flammability rating of UL94 V-0.\n\nThe header is through-hole mounted with solder termination. Overall contact length is 0.652" (16.56mm) and insulation height is 0.680" (17.27mm). The square copper alloy contacts are plated with 30.0µin (0.76µm) of tin. A keying slot and mounting flange are included for alignment and mechanical retention.\n\nElectrically, each contact is rated for 1.75A with an operating temperature range of -55°C to 105°C. The header is suitable for board-to-board or cable-to-board connections, making it versatile for various interconnection applications.\n\nPackaging and compliance details: RoHS3 compliant (unverified), MSL Level 1, and REACH unaffected (both unverified). All positions are loaded, with a total of 40 pins.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.30 | $6.30 |
| 10+ | $5.40 | $5.40 |
| 50+ | $5.20 | $5.20 |
| 100+ | $4.37 | $4.37 |
| 200+ | $4.26 | $4.26 |
| 600+ | $4.03 | $4.03 |
| 1,000+ | $3.89 | $3.89 |
| 2,600+ | $3.80 | $3.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
2.54mm (0.100")
1.75A
Through hole with solder termination.
-55°C to 105°C
Yes, shrouded with 4 walls.
Latch Lock/Eject Hooks, Long
