| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
57 pcs
|
57 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

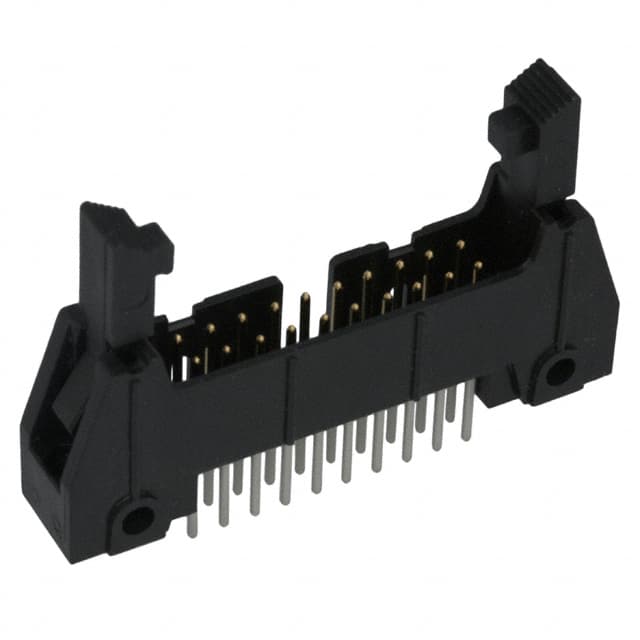

The 3M N3428-6303RB is a 20-position, 2-row rectangular header with male pins. It features a 2.54mm (0.100") pitch and row spacing, designed for through-hole mounting with solder termination. The connector is shrouded with four walls and includes a latch lock/eject hook fastening system for secure mating. Key mechanical features include a keying slot and mounting flange. The insulation is made of black polycyclohexylenedimethylene terephthalate (PCT) with glass-filled polyester, rated UL94 V-0 for flammability. Contacts are copper alloy with a tin finish, rated for 1.75A current. The operating temperature range is -55°C to 105°C. This header is suitable for board-to-board or cable-to-board applications. Compliance data indicates RoHS3 compliance, MSL 1, and REACH unaffected, though these are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.00 | $4.00 |
| 10+ | $3.81 | $3.81 |
| 25+ | $3.78 | $3.78 |
| 100+ | $3.69 | $3.69 |
| 300+ | $3.00 | $3.00 |
| 600+ | $2.86 | $2.86 |
| 1,200+ | $2.72 | $2.72 |
| 2,700+ | $2.71 | $2.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100 inches).
1.75A.
Through hole.
-55°C to 105°C.
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled.
Yes, RoHS3 compliant (unverified).
