| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

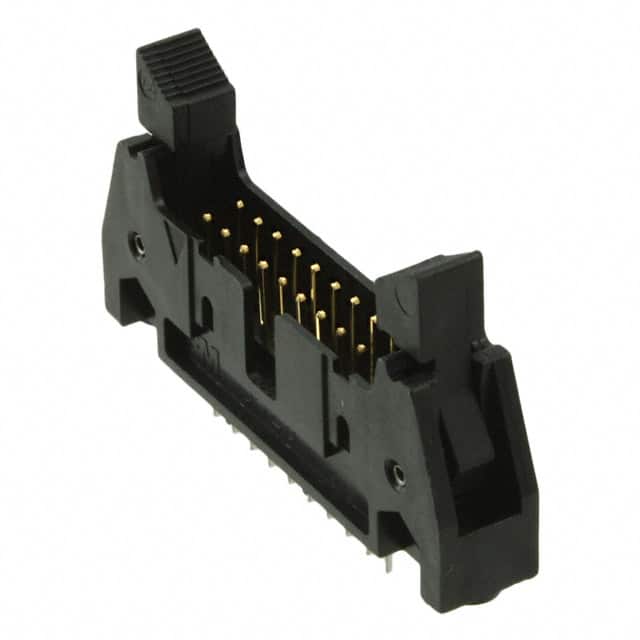

The 3M N3428-6203RB is a 20-position, 2-row rectangular header connector designed for board-to-board or cable applications. It features a shrouded 4-wall design with latch lock/eject hooks for secure mating. The connector has a 2.54mm pitch and 0.100" row spacing. Contacts are made of copper alloy with a tin finish (30.0µin). The insulation material is black glass-filled PCT/polyester with UL94 V-0 flammability rating. It is through hole mounted with solder termination. The operating temperature range is -55°C to 105°C. Current rating is 1.75A. The connector includes keying slot and mounting flange features.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.33 | $4.33 |
| 10+ | $3.81 | $3.81 |
| 100+ | $3.68 | $3.68 |
| 300+ | $3.00 | $3.00 |
| 600+ | $2.85 | $2.85 |
| 1,200+ | $2.71 | $2.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions in 2 rows.
2.54mm (0.100").
1.75A.
Through hole with solder termination.
-55°C to 105°C.
Yes, it is shrouded with 4 walls.
Tin, 30.0µin (0.76µm).
