| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,898 pcs
|
6898 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,152 pcs
|
2152 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

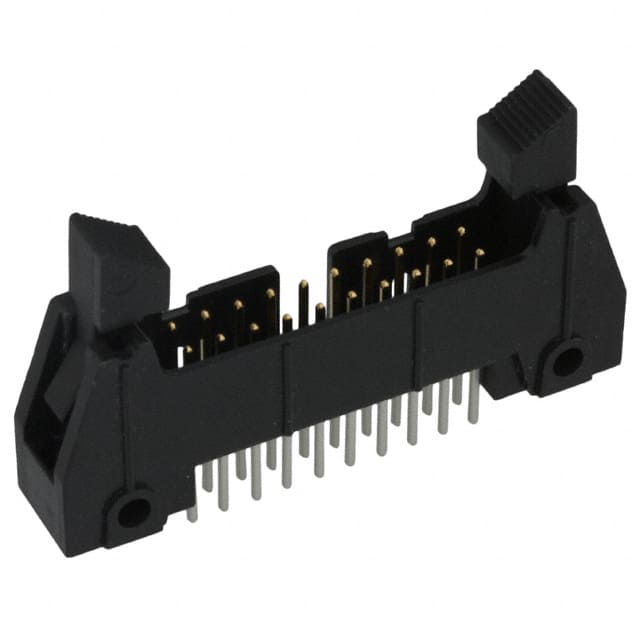

The 3M N3428-6202RB is a 20-position male pin header with a 2.54mm (0.100") pitch, designed for through hole solder termination. It features a shrouded 4-wall design with short latch lock/eject hooks for secure mating. The header is suitable for board-to-board or cable connections and includes a keying slot and mounting flange for alignment and stability. The contacts are made of copper alloy with a tin finish (30.0µin), and the insulation is black polycyclohexylenedimethylene terephthalate (PCT) glass-filled polyester, rated UL94 V-0 for flammability. The operating temperature range is -55°C to 105°C, and the current rating is 1.75A per contact. This part is commonly used in industrial, test, and data communication applications where reliable interconnects are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.95 | $3.95 |
| 10+ | $3.54 | $3.54 |
| 25+ | $3.43 | $3.43 |
| 300+ | $3.21 | $3.21 |
| 600+ | $3.11 | $3.11 |
| 1,200+ | $2.67 | $2.67 |
| 2,700+ | $2.59 | $2.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 20 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm.
The current rating is 1.75A per contact.
It uses through hole mounting with solder termination.
The operating temperature range is -55°C to 105°C.
The contacts have a tin finish with a thickness of 30.0µin (0.76µm).
The insulation is black polycyclohexylenedimethylene terephthalate (PCT) glass-filled polyester with a UL94 V-0 flammability rating.
