| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

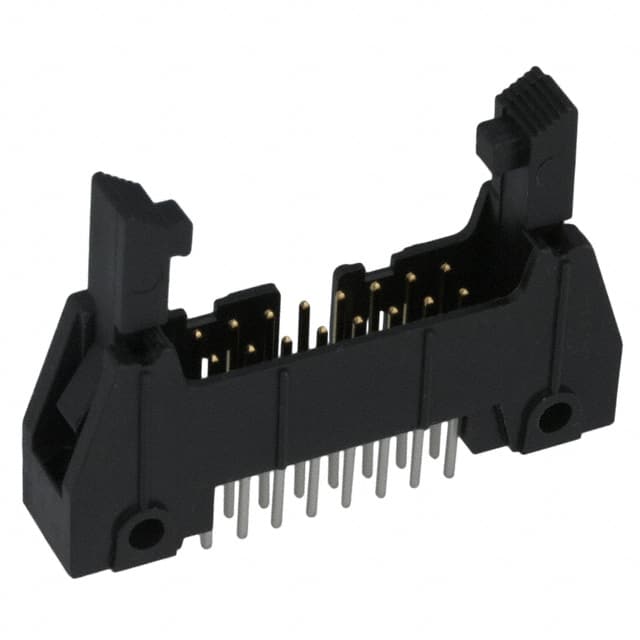

The 3M N3408-6302RB is a 16-position male pin header designed for board-to-board or cable connections. It features a 2.54mm pitch and row spacing, with a 4-wall shrouded design that includes latch lock/eject hooks for secure mating and easy removal. The contacts are made of copper alloy with a tin finish (0.76µm thickness) and square shape, with an overall contact length of 16.56mm. The insulation is black glass-filled PCT/Polyester, rated UL94 V-0. This header has a current rating of 1.75A per contact and operates over a temperature range of -55°C to 105°C. It includes a keying slot and mounting flange for alignment and stability. Termination is through-hole solder, making it suitable for robust PCB mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.59 | $3.59 |
| 10+ | $3.26 | $3.26 |
| 25+ | $3.06 | $3.06 |
| 100+ | $2.87 | $2.87 |
| 250+ | $2.54 | $2.54 |
| 350+ | $2.41 | $2.41 |
| 1,050+ | $2.34 | $2.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
2.54mm (0.100").
1.75A per contact.
Through-hole with solder termination.
-55°C to 105°C.
Yes, it is a 4-wall shrouded header.
Tin with 0.76µm thickness.
