| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

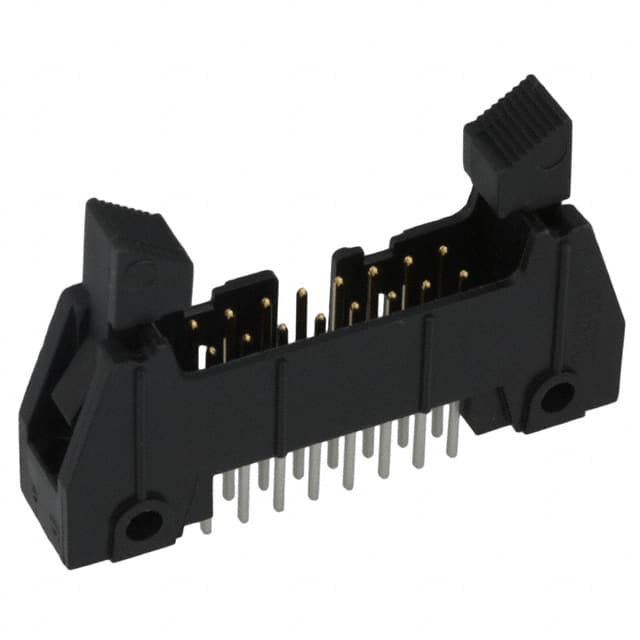

The 3M N3408-6202RB is a 16-position, 2-row shrouded header designed for board-to-board or cable applications. It features a 2.54mm pitch and row spacing, making it compatible with standard ribbon cable connectors. The header uses through hole mounting with solder termination for reliable mechanical and electrical connections.
This connector is constructed with a black glass-filled PCT/polyester insulator rated UL94 V-0 for flammability. The square male pin contacts are made of copper alloy with a tin finish (30.0µin thickness) and have an overall contact length of 16.56mm. The shrouded 4-wall design includes a keying slot and mounting flange for secure alignment.
The header features short latch lock/eject hooks for positive mating retention. It is rated for a current of 1.75A per contact and operates over a temperature range of -55°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.58 | $3.58 |
| 10+ | $3.05 | $3.05 |
| 100+ | $2.88 | $2.88 |
| 250+ | $2.37 | $2.37 |
| 350+ | $2.23 | $2.23 |
| 1,050+ | $2.11 | $2.11 |
| 2,800+ | $2.07 | $2.07 |
| 5,250+ | $2.03 | $2.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The N3408-6202RB has 16 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm (0.100").
The N3408-6202RB uses through hole mounting with solder termination.
The current rating is 1.75A per contact.
The operating temperature range is -55°C to 105°C.
It features short latch lock/eject hooks for fastening.
The insulator is made of glass-filled PCT/polyester and has a UL94 V-0 flammability rating.
