N3372-5302RB

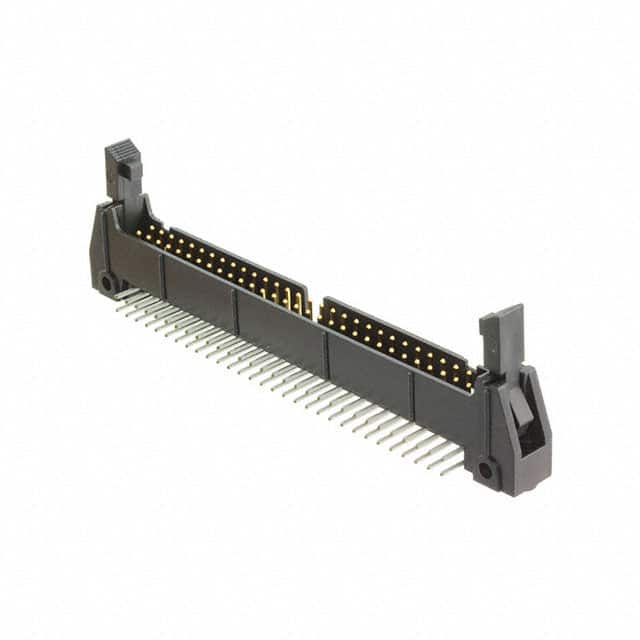

The 3M N3372-5302RB is a 60-position right angle shrouded header designed for board-to-board or cable interconnections. It has two rows of male square pins on a 2.54mm pitch with a row spacing of 2.54mm. The connector features a full 4-wall shrouded housing with latch lock/eject hooks for secure mating, along with a keying slot and mounting flange for alignment and retention. The insulation is made of black glass-filled PCT/polyester (UL94 V-0 rated) with an insulation height of 8.64mm and a contact length of 6.10mm. Contacts are copper alloy with a tin finish (note: source conflict with gold per Mouser).

Electrically, the header is rated for 1.75A continuous current and operates over a temperature range of -55°C to 105°C. It is terminated by through hole soldering in a right angle orientation, making it suitable for applications where a low-profile parallel connection is needed. The design supports high-density packaging in industrial, commercial, and consumer electronics.

Key features include the latch lock fastening type, keying slot to prevent mis-mating, and mounting flanges for mechanical stability. The connector meets UL94 V-0 flammability requirements and is marked as RoHS3 compliant (unverified).
