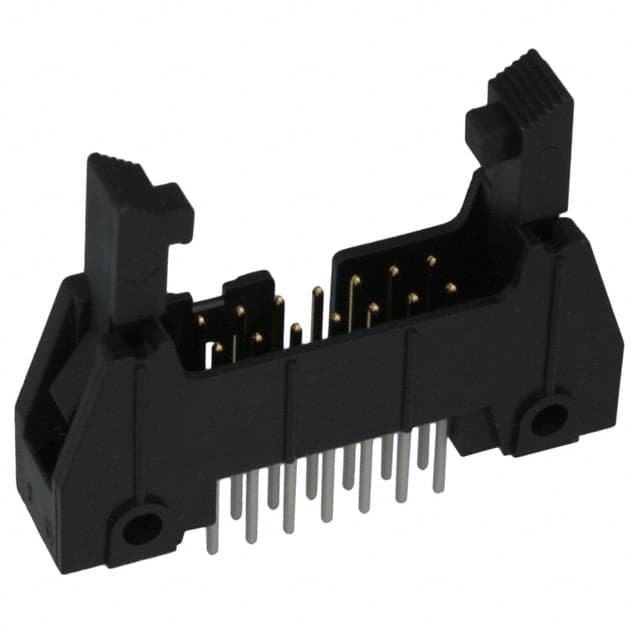

N3314-6303RB The N3314-6303RB is a 14-position, 2.54mm pitch shrouded header with male pins from 3M. It features a latch lock for secure board-to-cable connections.
Mfr Part #:

N3314-6303RB

Available from 1 distributors
Mfr Name: 3M Electronic Solutions
3M Electronic Solutions
The N3314-6303RB is a 14-position, 2.54mm pitch shrouded header with male pins from 3M. It features a latch lock for secure board-to-cable connections.
✓ Total Stock: 76 pcs
$ Price Range: $1.85 - $3.41

N3314-6303RB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
76 pcs
On Request
76 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

N3314-6303RB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

N3314-6303RB Description

Short technical summary and product information.

The N3314-6303RB from 3M is a vertical shrouded header connector designed for board-to-cable/wire applications. It features 14 male pin contacts arranged in 2 rows with a 2.54mm (0.100") pitch and row spacing. The connector is fully shrouded with a 4-wall design and includes long latch lock/eject hooks for secure mating. The insulation is made of glass-filled PCT/polyester material in black, with an insulation height of 17.27mm (0.680"). The contact length is 6.10mm (0.240") with an overall contact length of 17.65mm (0.695"). This header is suitable for applications requiring reliable connections in a compact form factor.

N3314-6303RB Quick Information

Product Type: Header, Male Pins
Series: 3000
Canonical Name: 3M N3314-6303RB — 14 Position 2.54mm Pitch Shrouded Header, Male Pins, Latch Lock
Subcategory: Shrouded Header, Latch Lock

N3314-6303RB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

N3314-6303RB Estimated Pricing

Qty Low High
1+ $3.41 $3.41
10+ $2.90 $2.90
25+ $2.89 $2.89
100+ $2.72 $2.72
250+ $2.44 $2.44
350+ $2.14 $2.14
1,050+ $2.08 $2.08
2,800+ $2.01 $2.01
5,250+ $1.85 $1.85

Estimated market price range - modelled values for guidance only, not live distributor offers.

N3314-6303RB Features

  • 14 positions in 2 rows.
  • 2.54mm pitch and row spacing.
  • Shrouded 4-wall design for protection.
  • Latch lock/eject hooks for secure mating.
  • Glass-filled PCT/polyester insulation material.

N3314-6303RB Applications

  • Designed for board-to-cable/wire connections.
  • Suitable for industrial electronic assemblies.
  • Ideal for applications requiring secure latch locking.

N3314-6303RB FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the N3314-6303RB have?

14 positions.

What is the pitch of the N3314-6303RB?

2.54mm (0.100").

How many rows does the N3314-6303RB have?

2 rows.

Is the N3314-6303RB shrouded?

Yes, it has a shrouded 4-wall design.

What fastening type does the N3314-6303RB use?

Latch lock/eject hooks, long.

What is the insulation material of the N3314-6303RB?

Polycyclohexylenedimethylene Terephthalate (PCT), polyester, glass filled.

What is the contact length of the N3314-6303RB?

6.10mm (0.240") contact length, 17.65mm (0.695") overall.
